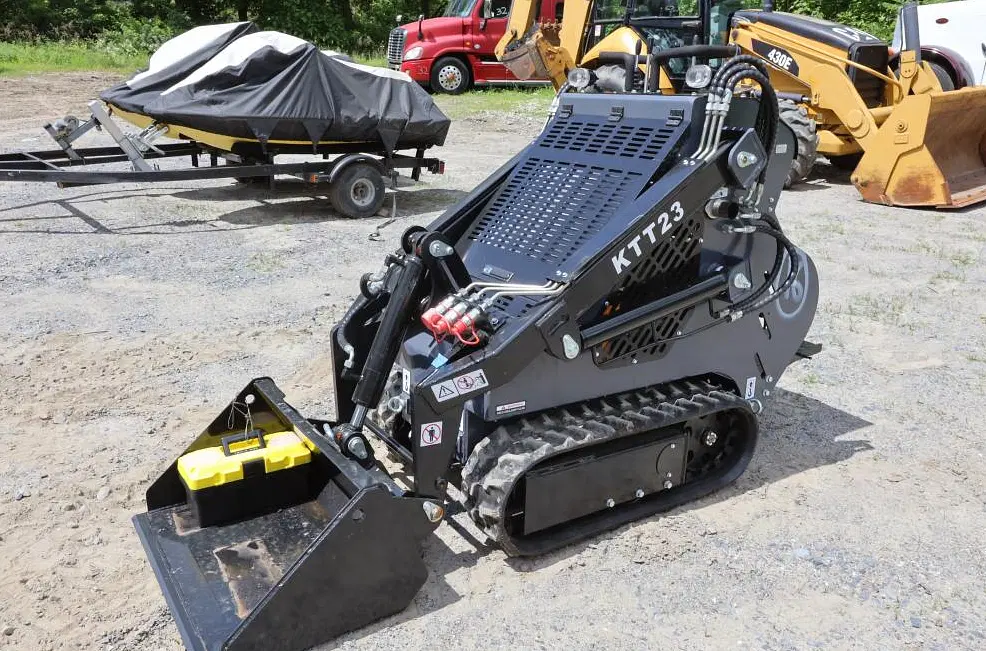

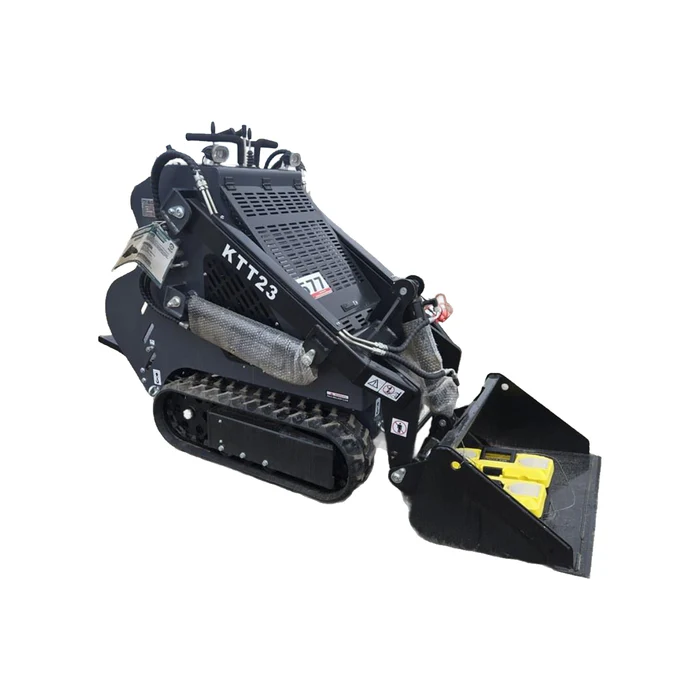

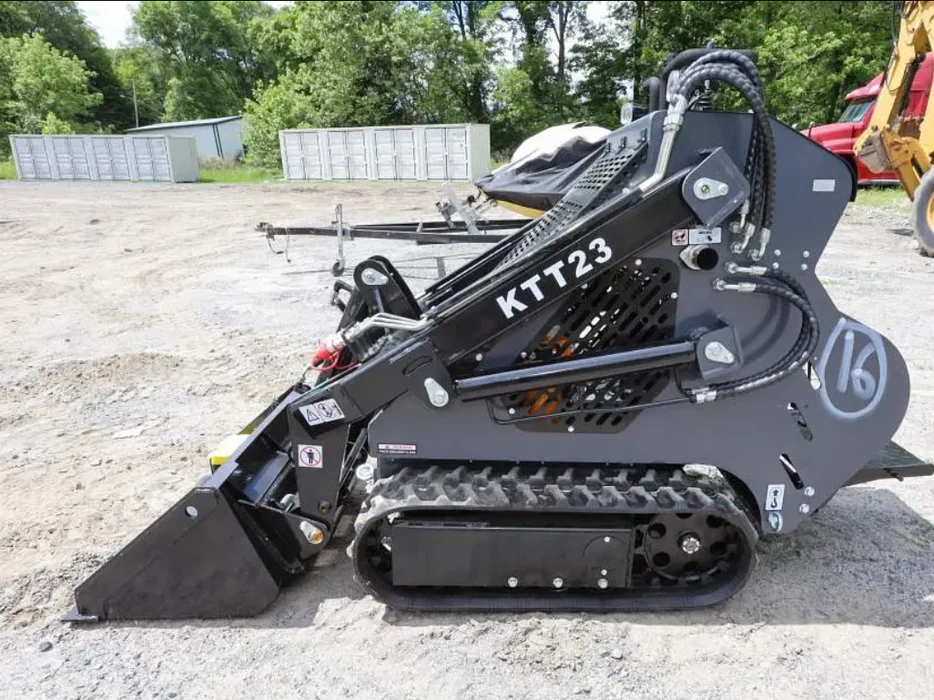

1 Ton, RATO Engine Mini Stand On Skid Steer Track Loader | KTT23

The compact and powerful skid steer features a maximum load capacity of 220 kg, a bucket capacity of 0.15 m³, and a RATO gasoline engine with 16.8KW output power

Technical Data:

Operation Weight: 1 Ton
Engine: RATO Gasoline

Specific Data:

Max Load Capacity
220 kg

Bucket Capacity
0.15 m³

Maximum Lift
375 kg

Traveling Speed
0-5.5 km/h

Rated Pressure
16Mpa

Lifting Time
4.3 s

Descent Time
3.3 s

Tipping Time
1.5 s

Maximum Angle of the climb
30°

Total Weight
905 kg

Engine
RATO

Engine type
gasoline, V-double cylinder

Output power
16.8KW(23HP)/3600rpm

Fuel consumption
≤6.7 L/h

Starting mode
Electric start

Tank capacity

Fuel Tank Capacity
25 L

Hydraulic Tank Capacity
25L

Engine oil tank capacity
1.6 L
