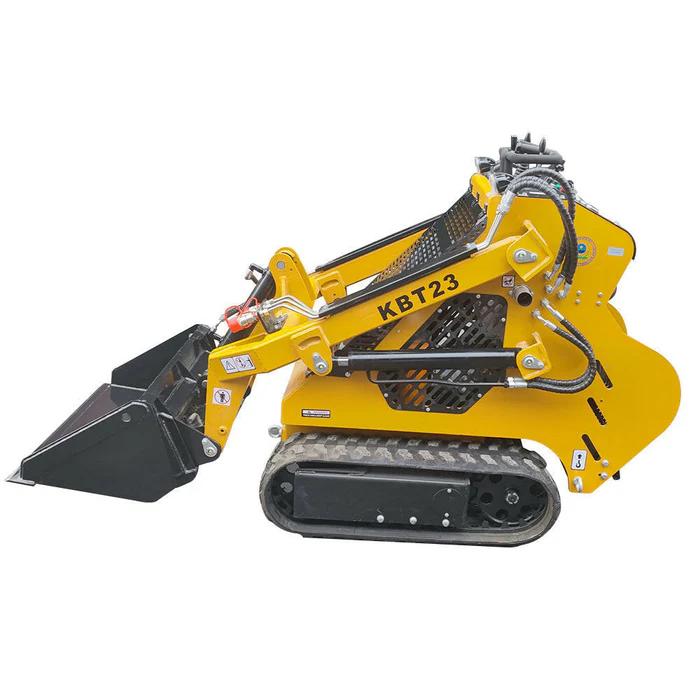

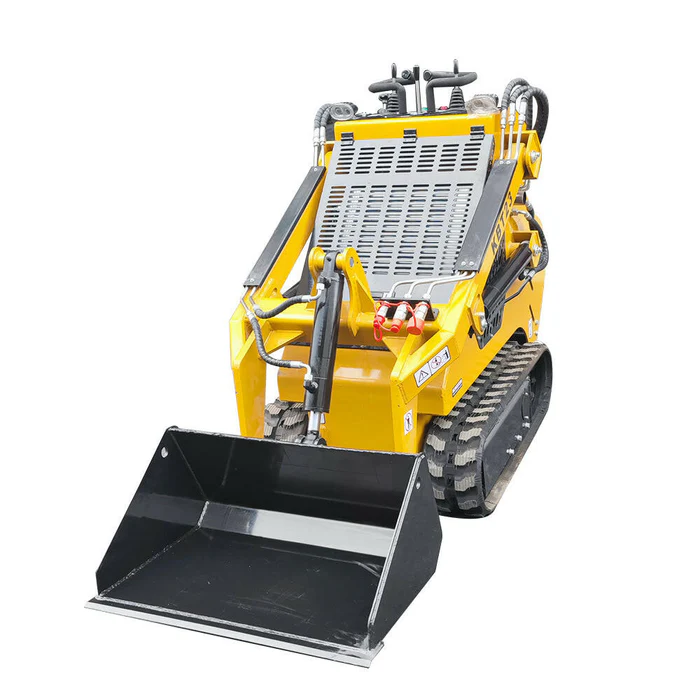

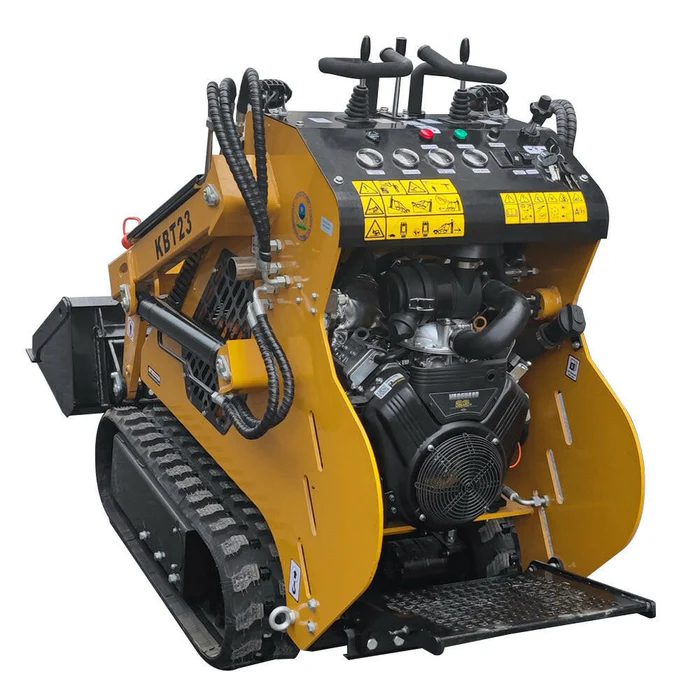

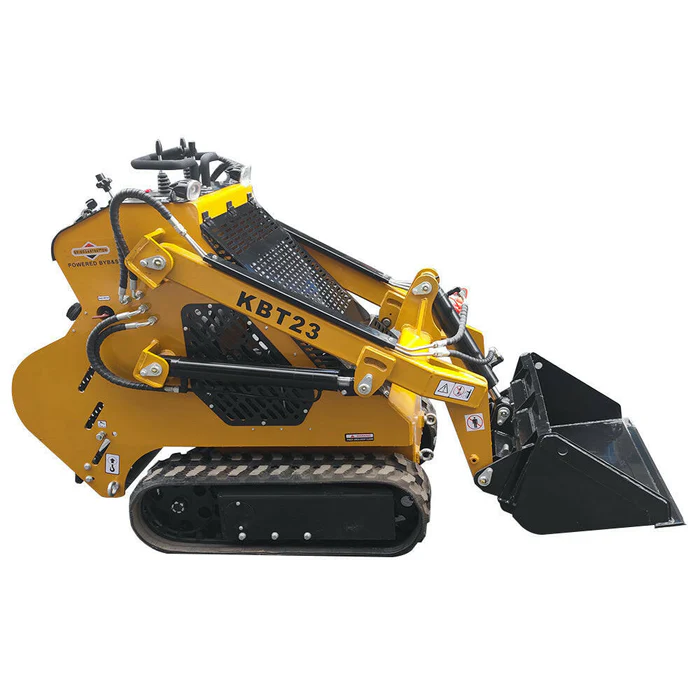

1 Ton, Mini Stand On Skid Steer Track Loader | CFG-KBT23

Learn about the KBT23 mini skid steer loader – a versatile power loader tailored to accomplish challenging tasks in tight spaces! This powerful machine is a compact 860kg machine that can effortlessly maneuver through tight project areas at speeds of up to 5.5km/hour and conquer slopes of up to 30°.
Technical Data:

Operation Weight: 0.95 Ton
Engine: B&S
Max Angle: 30 Degree

Specific Data:

Max Load Capacity
200 kg

Bucket Capacity
0.15 m³

Maximum Lift
375 kg

Traveling Speed
0-5.5 km/h

Rated Pressure
16Mpa

Lifting Time
4.3 s

Descent Time
3.3 s

Tipping Time
1.5 s

Maximum Angle of the climb
30°

Total Weight
860 kg

Engine parameter

Engine
B&S engine

Engine type
gasoline, V-double cylinder

Output power
16.8KW(23HP)/3600rpm

Fuel consumption
≤6.7 L/h

Starting mode
Electric start

Tank capacity

Fuel Tank Capacity
25 L

Hydraulic Tank Capacity
25L

Engine oil tank capacity
1.7 L
