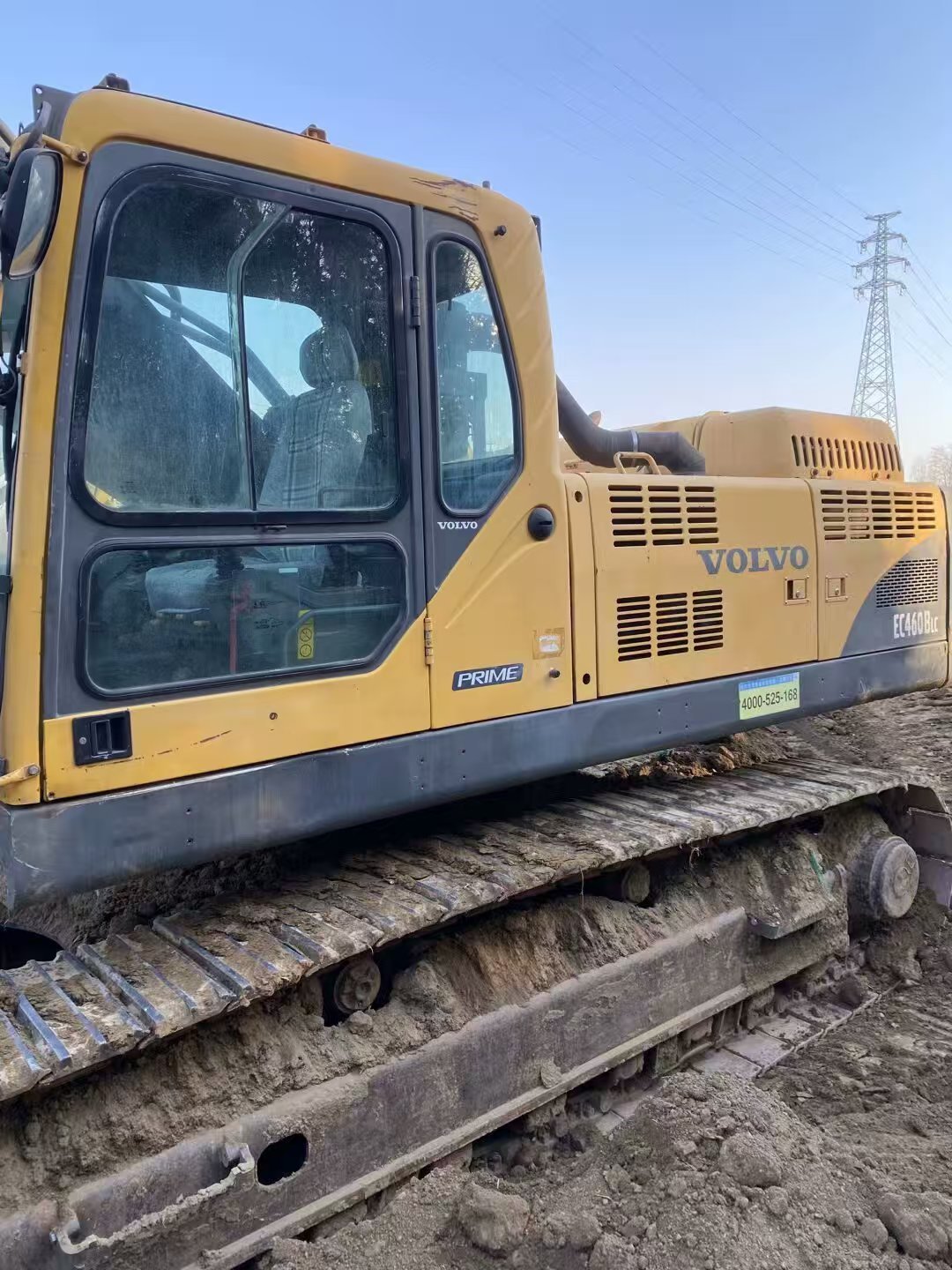

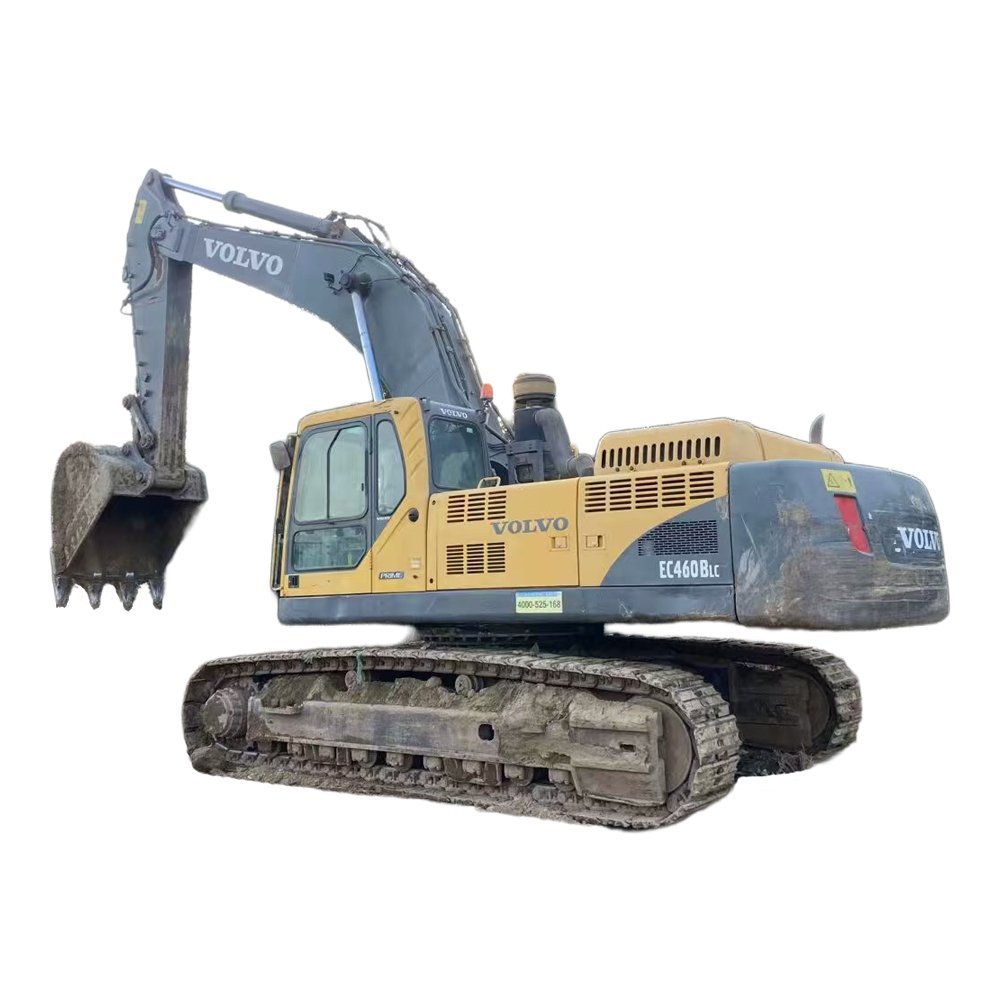

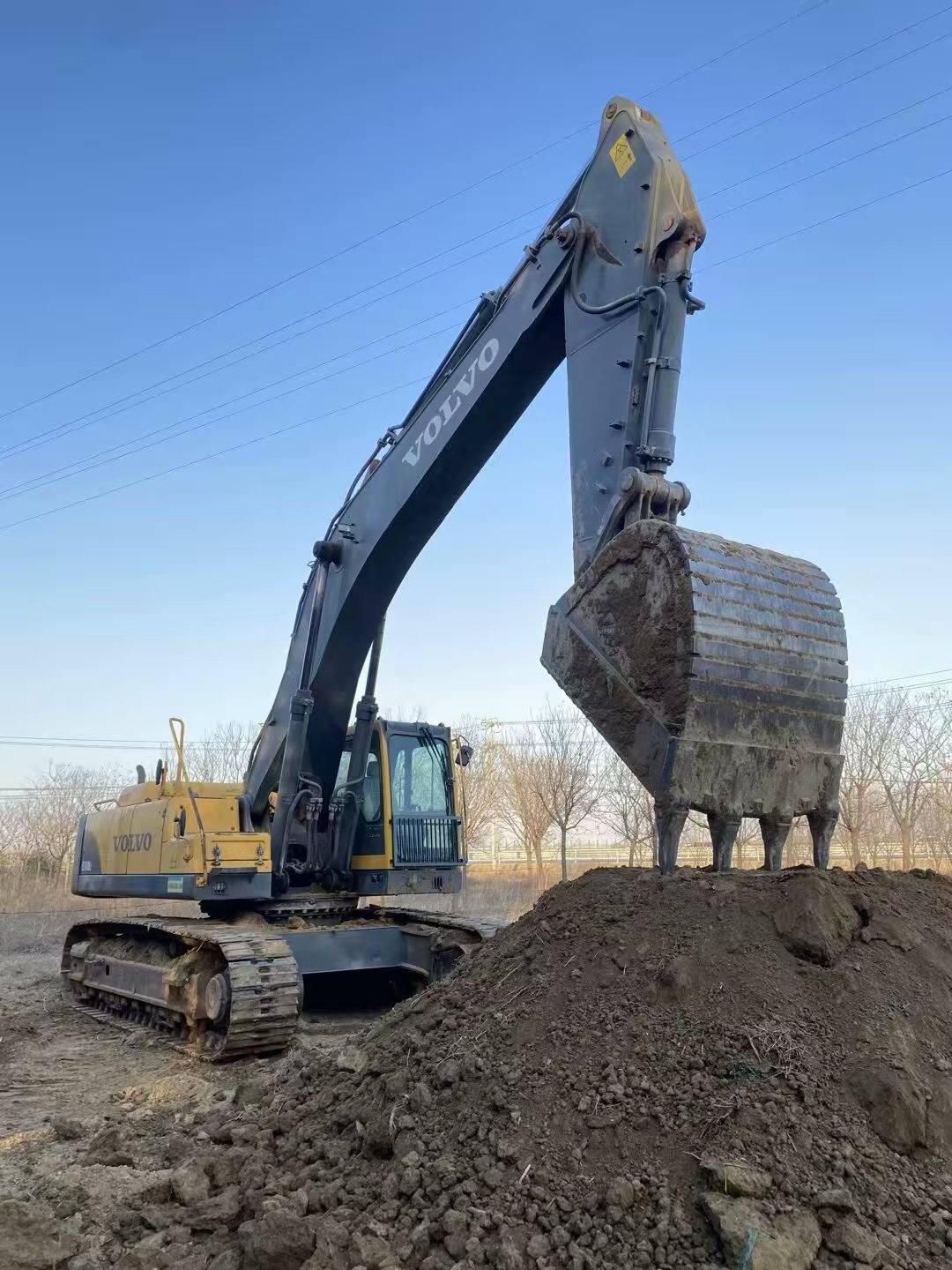

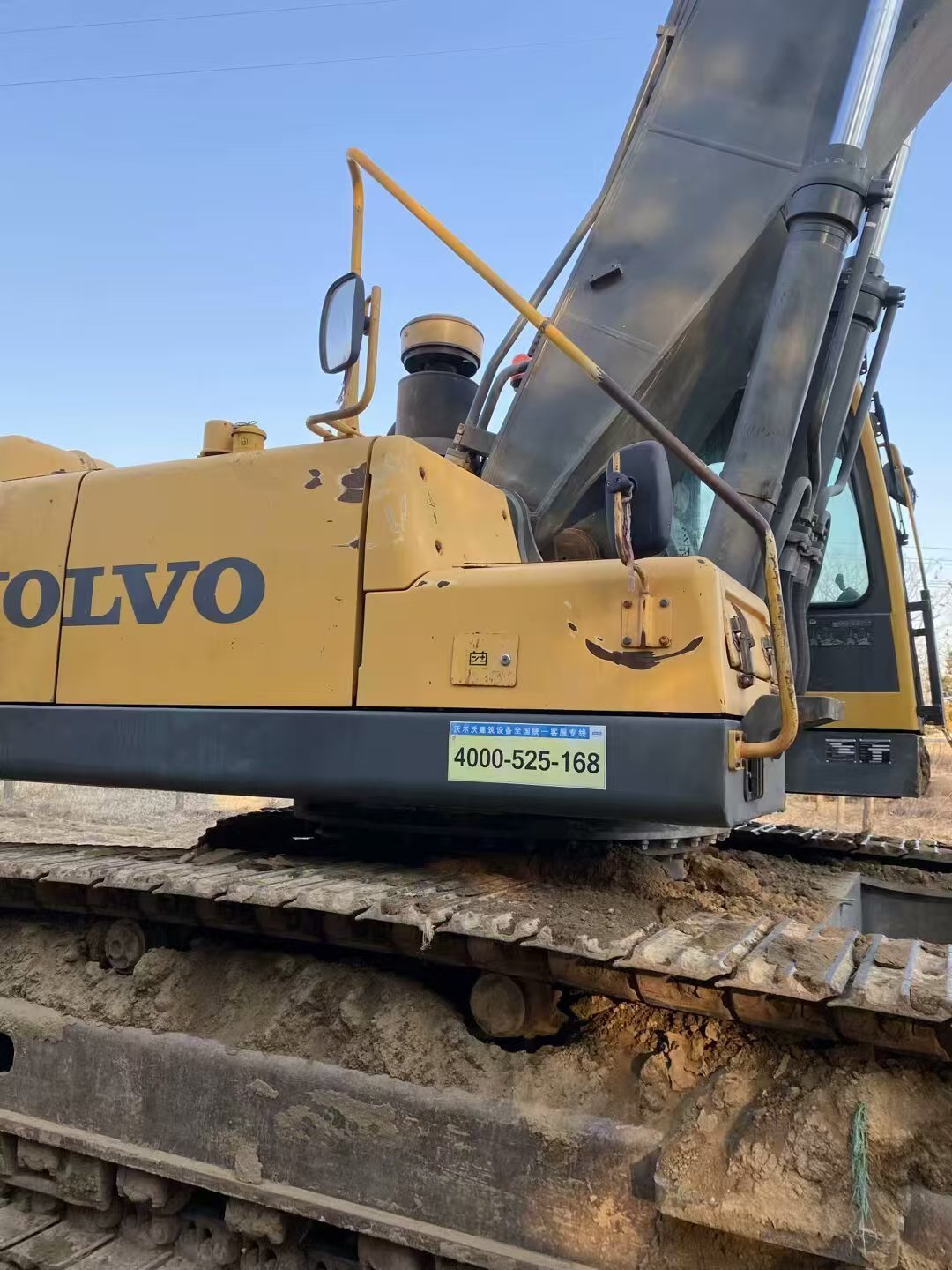

Volvo EC460BLC EXCAVATOR

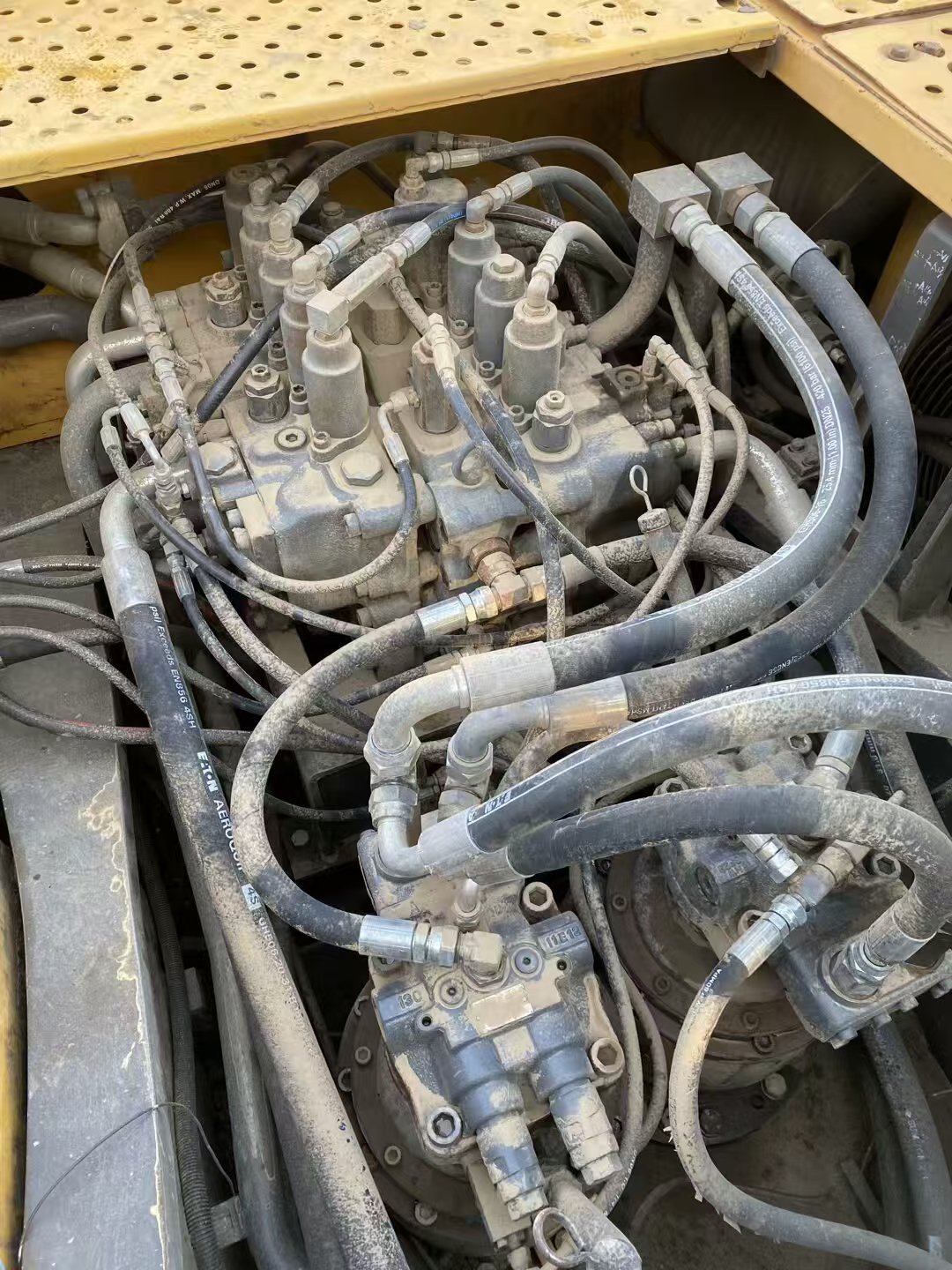

The Volvo EC460BLC excavator has an operating weight of 44,500 kg. With a bucket capacity ranging from 1.8 to 3.73 cubic meters, a slewing speed of 8.5 rpm, and a traveling speed of 2.9/4.8 km/h, it performs outstandingly during operations. Its power comes from the Volvo D12D engine, with a rated power of 245 kW at 1,800 rpm and a maximum torque of 1,720 N·m at 1,350 rpm. Equipped with a hydraulic system consisting of two variable displacement axial piston pumps and one gear pump, the maximum flow rate of the main pumps is 345×2 + 31 L/min, and the working hydraulic circuit pressure reaches 31.4/34.3 MPa, providing a solid guarantee for efficient operations.





In terms of the working equipment, the 7,000-mm boom and the 3,350-mm stick work in coordination. Together with the boom cylinder, stick cylinder, and bucket cylinder, they enable flexible and powerful digging and loading. The cab is spacious and comfortable, featuring a super comfortable seat, large glass areas, and slender cab window pillars, which offer a good view. The ergonomic operation console is convenient to operate.



For maintenance, the centralized lubrication system reduces costs, and the engine hood can be opened at a large angle for easy inspection and repair. The appearance features a tough and stylish design with smooth lines, and the prominent Volvo logo gives it both practicality and high visibility.

Technical Parameter

Category
Parameters

Volvo EC460BLC Excavator

Engine Model
Volvo D12D

Overall Working Weight of the Machine
44,500 kg

Bucket Capacity
1.8 – 3.73 cubic meters

Total Transport Length
12,070 mm

Total Transport Width
3,340 mm

Total Transport Height
3,650 mm

Traveling Speed
2.9/4.8 Km/h

Slewing Speed
8.5 rpm

Gradability
70%

Maximum Digging Radius
12,000 mm

Maximum Digging Depth
7,700 mm

Maximum Digging Height
10,970 mm

Maximum Unloading Height
7,650 mm

Bucket Digging Force
253.0 kN (Standard)/276.5 kN (Boost)

Arm Digging Force
195.1 kN (Standard)/213.8 kN (Boost)

Rated Power
245 kW/1,800 rpm

Total Displacement
12.1 L

Track Gauge
2,740 mm

Track Ground Contact Length
4,370 mm

Track Shoe Width
600 mm
