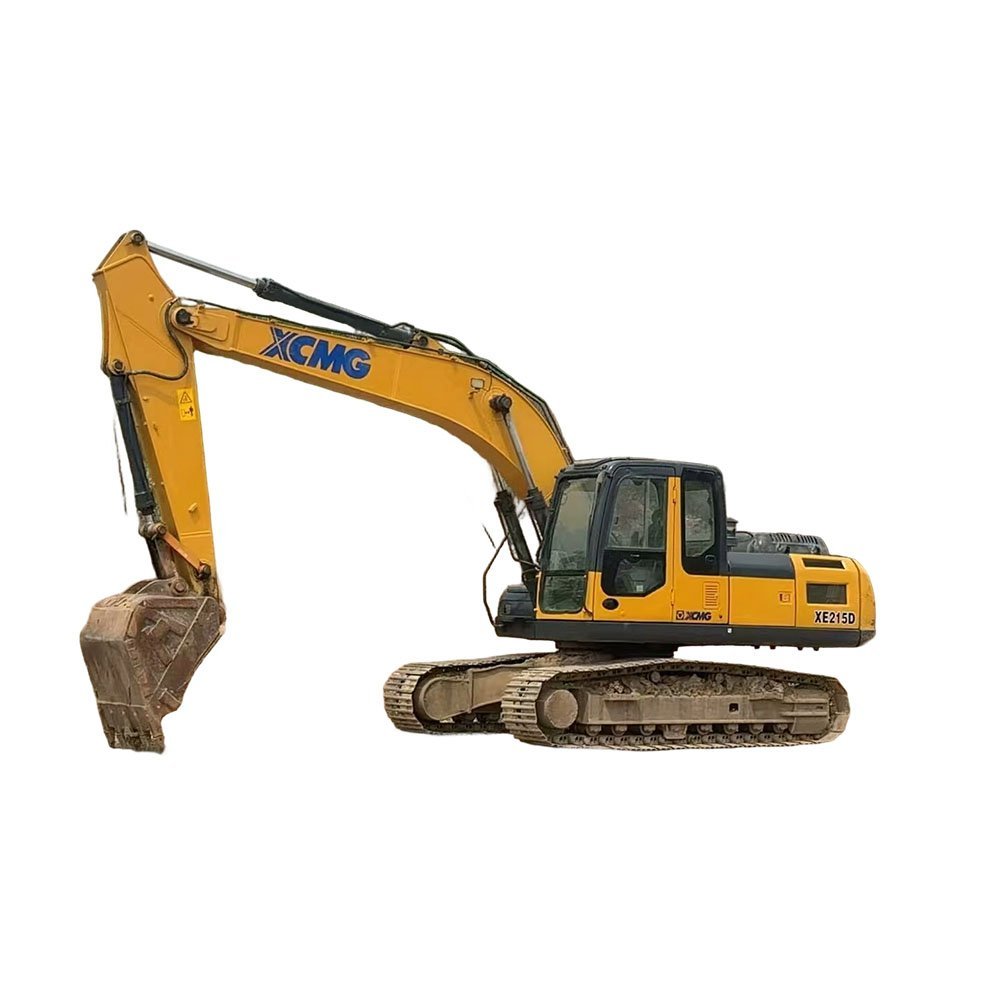

XCMG 215 excavator

XCMG 215DA excavator is the backbone of construction machinery. It is equipped with a QSB7 engine with a power of 135 kW/2050 rpm, and adopts advanced technologies such as water cooling, electronic injection, four-stroke, self-priming, and air-to-air. It is not only powerful, but also durable, uses fuel-saving fuel, and meets the National III emission standards. The hydraulic system is also excellent, with a main pump displacement of up to 2×216 liters/minute.



The new independent auxiliary pump system makes the main pump power distribution more effective, improves efficiency and reduces energy consumption. The machine has an operating weight of 21,900 kg and a bucket capacity of 1.05 cubic meters, combining power and excavation capabilities.

This excavator have a wide range of applications and can quickly complete material excavation and transportation in small and medium-sized projects. In municipal construction, whether it is road construction, pipeline laying, or park construction, it can successfully complete the work with excellent controllability and efficiency. In scenarios such as road and bridge construction, trench excavation, field water conservancy construction, and small-scale mining, the XCMG 215DA machine can also easily solve various operational problems and provide solid support for the development of construction projects.





Technical Parameter

Machine working weight
21900kg

Bucket capacity
1.05m³

Boom length
5680mm

Arm length
2910mm

Slewing speed
11.8rpm

Travel speed
5.4/3.1km/h

Gradability
35%

Ground pressure
47.2Kpa

Bucket digging force
149kN

Arm digging force
111kN

Maximum traction force
184kN

Engine model
QSB7

Rated power
135kW/2050rpm

Displacement
6.7L

Number of cylinders
6

Cooling method
Water cooling

Working mode
EFI, 4 stroke, turbocharged, air-to-air intercooling

Maximum flow of main pump
2×216L/min

New independent control system of sub-pump
realize accurate distribution of main pump power, higher working efficiency and lower fuel consumption

Fuel tank
400L

Hydraulic oil tank
220L

Engine oil replacement volume
19.5L

Total transport length
9625mm

Total transport width
2990mm

Total transport height
3100mm

Total track length
4255mm

Track shoe width
600mm

Track gauge
2390mm

Minimum ground clearance
486mm

Counterweight ground clearance
1050mm

Minimum turning radius of front working device
3530mm

Rear end turning radius
2844mm

Maximum digging radius
9940mm

Maximum digging depth
6680mm

Maximum digging height
9620mm

Maximum unloading height
6780mm

Maximum vertical digging depth
5715mm
