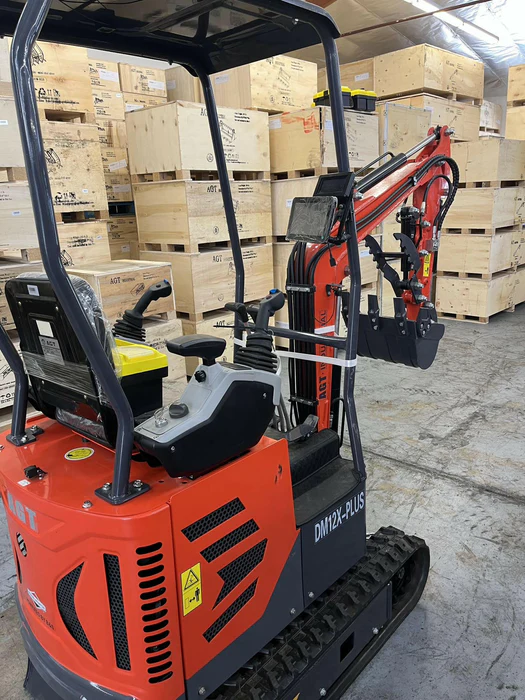

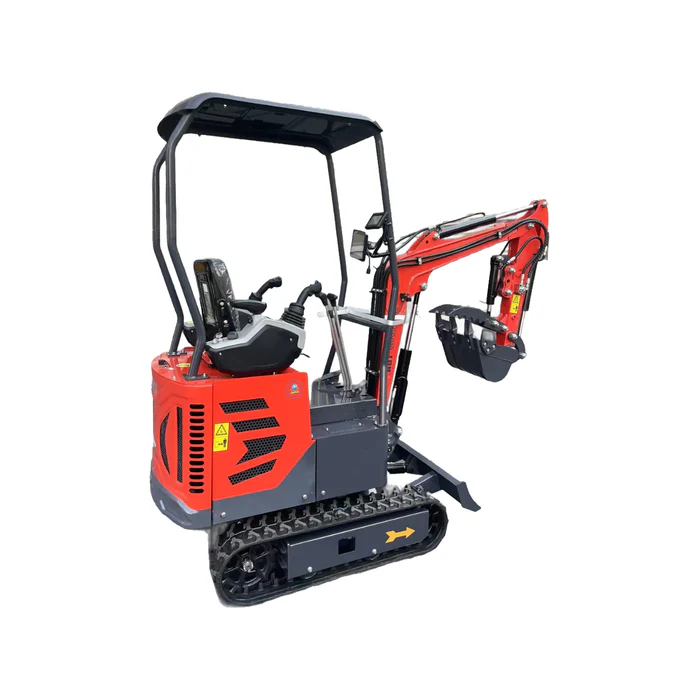

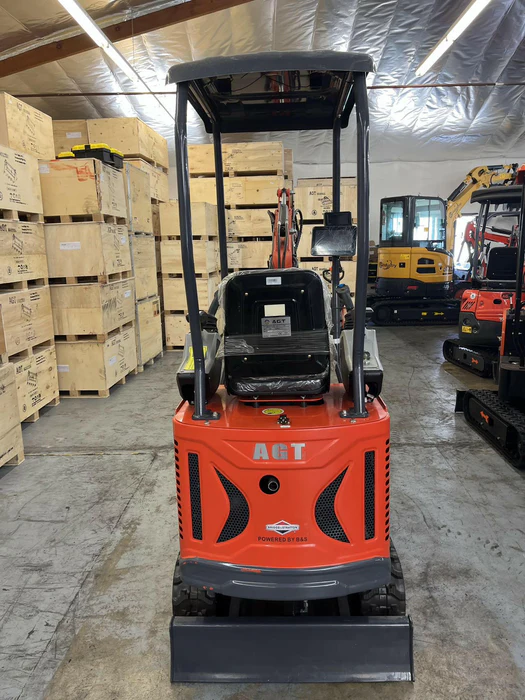

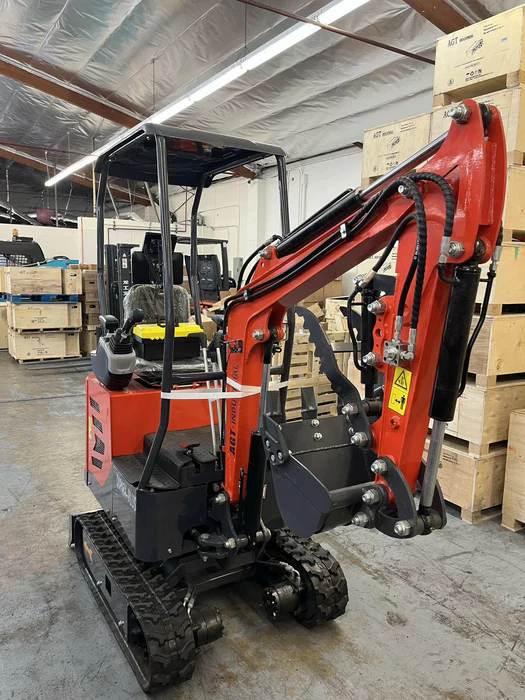

1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb & Features | DM12X-PLUS

AGT-DM12X-PLUS has a compact and reliable design that ensures easy maneuverability in small areas such as farms, gardens, public spaces, parks, orchards, and farms. Featuring Two Speed, Pilot Control, Hydraulic Cooler, Swing Boom, and more! This is a feature heavy Mini Excavator and the Pro-grade version of AGT-DM12X-C.
Technical Data:

Operation Weight: 1.1 Ton
Engine: B&S
Horse Power: 13.3
Max Angle: 30 Degree
Thickened wear-resistant track
Impulsive traveling motor
EFI Electric Fuel Injection Engine Electric Fuel Injection
High and low speed traveling
Stainless steel screws for exterior parts
Pilot operation
Italy EBI pilot handle
Dual display screen (parameter screen, entertainment screen)
Front and rear double camera
Hydraulic thumb clamp
Side swing configuration
Oil cooling configuration
Electric injection engine, adjustable high and low speeds

Specifics:
Weight:

Total-Weight:-2200-lbs

Dimensions:

Transport Length: 89 inches
Transport Width: 38 inches
Transport Height with Canopy: 87 inches
Climbing Ability: 30%
Bucket Width: 14 inches
Max Digging Radius: 121 inches
Blade Width: 1.41 inches
Max Digging Depth: 69 inches

Performance:

Bucket Capacity: 0.883 cubic feet
Walking Speed (Low/High): 0-1.24 mph
Climbing Ability: 30%
Grounding Specific Pressure: 4.64 psi

Engine:

Engine Brand: Briggs and Stratton
Engine Model: 13.5HP
Max Horsepower: 13.3 hp
Max Digging Height: 105 inches
Max Unloading Height: 75 inches

Hydraulic System:

Main Pump Type/Model: Gear pump/06
Rated Setting Pressure: 2320 psi
Max Flow of Main Pump: 8-12 gallons/min
Multi-way Valve: 8-section multi-way valve Rated Setting Pressure: 2320 psi
Max Setting Pressure: 2320 psi
Travel Hydraulic Motor Type: BM6-310
Travel Motor Brand: Liyuan
Rubber (Width/Pitch/Number of Sections): 0.28/0.1137 inches
Steel (Width/Pitch/Number of Sections): 0.28/0.1137 inches
Rubber Blocks: Yes

Swing Hydraulic Motor:

Type: BM2-250
Displacement: 250

Fuel and Fluid Capacity:

Fuel Tank Capacity: 1.74 gallons
Tension Type: Mechanical Tension
Hydraulic Oil Tank: 4.76 gallons
