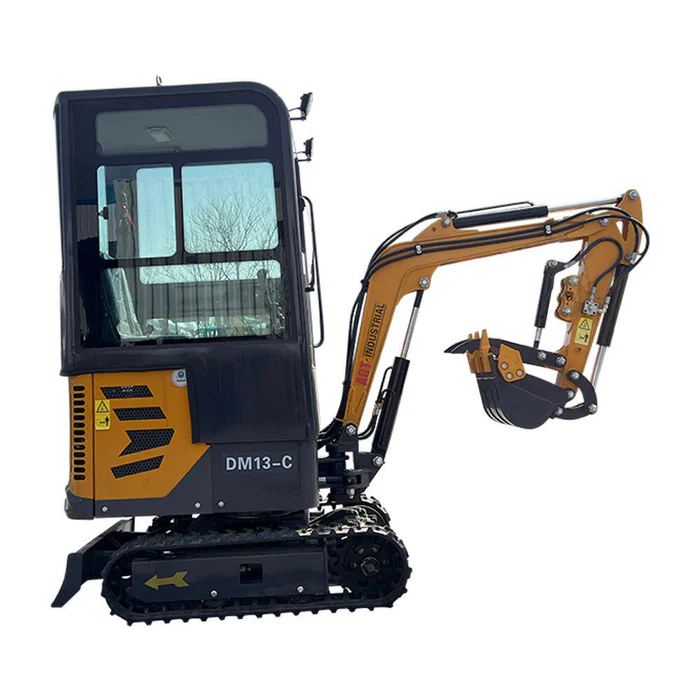

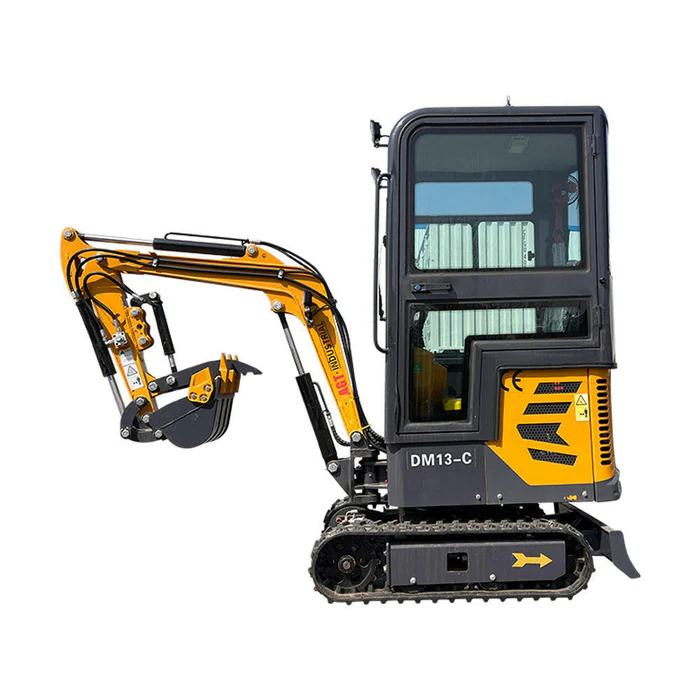

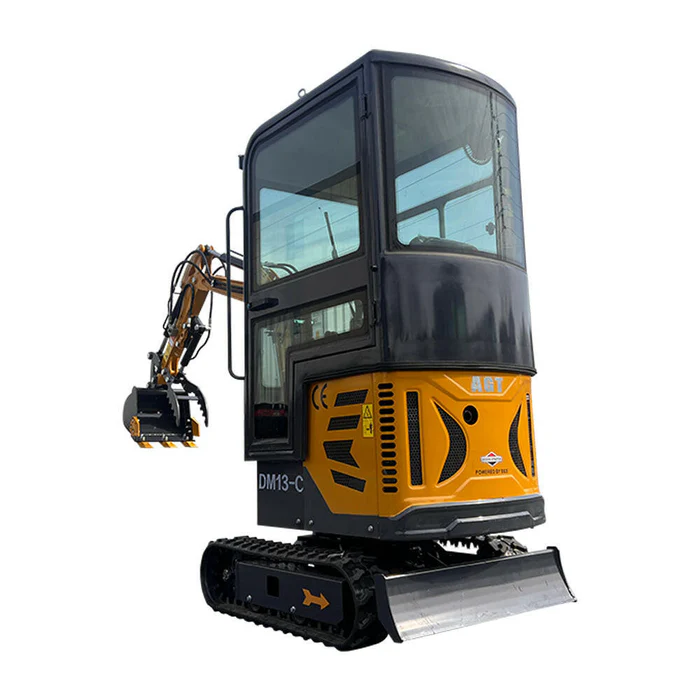

1 Ton, B&S Engine Mini Small Cab Excavator w/ Hydraulic Thumb & Swing Boom | DM13-C

The AGT-DM13C is a compact and versatile 1.3-ton mini excavator designed for various excavation tasks.
Technical Data:
Engine:

Brand: Briggs & Stratton (B&S)
Model: 13.5 HP
Power Output: 9.8 kW
Maximum Speed: 3,600 RPM
Cylinders: 1
Cooling Method: Fan cooling
Engine Oil Capacity: 1.1 liters
Fuel Type: Gasoline
Fuel Grade: 92#
Theoretical Fuel Consumption: 0.5-1.2 liters per hour

Performance:

Operating Weight: 2,150 lbs (975 kg)
Maximum Digging Depth: 1,650 mm
Maximum Digging Height: 2,400 mm
Maximum Digging Radius: 3,080 mm
Maximum Climbing Ability: 30°

Hydraulic System:

Main Pump Type/Model: Gear pump/06
Main Pump Brand: Tianjin Xingzou
Rated Set Pressure: 16 MPa
Maximum Flow Rate of Main Pump: 21.6 liters per minute
Multi-way Valve: 8 multi-way valves
Multi-way Valve Brand: Bei Fang

Dimensions:

Overall Length: 2,738 mm
Overall Width: 935 mm
Overall Height: 2,209 mm
Bulldozer Width/Height: 907 mm / 210 mm

Undercarriage:

Track Type: 7-inch rubber tracks

Additional Features:

Cabin: Enclosed cab (no air conditioning)
Boom: Articulating/swing boom with a 30° angle

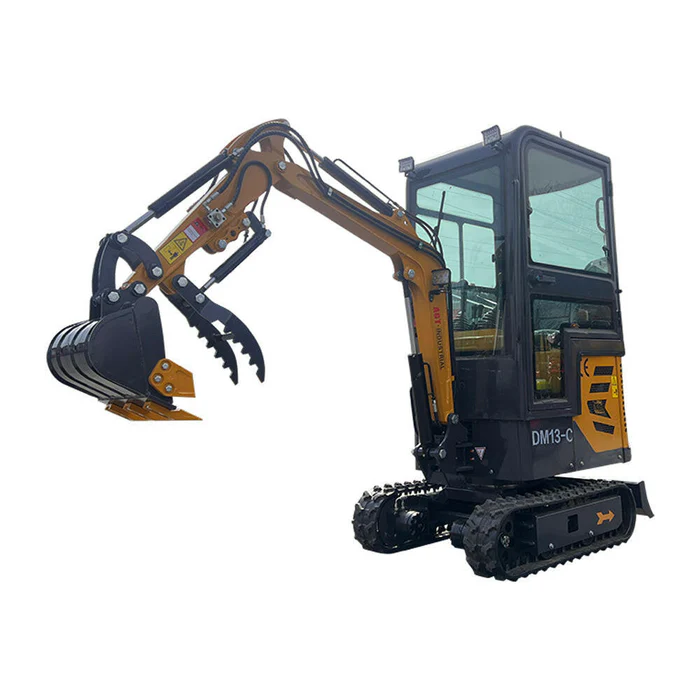

Attachments: Hydraulic thumb installed, 13-inch digging bucket, push blade
Auxiliary Hydraulics: Yes
Specific Data:

Basic
Performance
Parameters
Working Weight(kg)
940

Bucket capacity(m³)
0.03

Travel speed low/high speed(Km/h)
0-0.2

Climbing ability(%)
30

A Maximum Digging Height(mm)
2795

B Maximum Unloading Height(mm)
1863

C Maximum Digging Depth(mm)
1684

E Max. digging radius(mm)
3112

Side Swing
√

Side Swing Angle (L/R)
30°

undercarriage expansion
×

Body
J  Overall Length(mm)
2738

K  Overall Width(mm)
935

L  Overall Height(mm)
2209

Bulldozer Width/Height
907/210

Engine
Engine Brand
B&S

Engine Model
13.5HP

Max. power(Kw)
9.8

Max. speed(rpm)
3600

Cylinders
1

Cooling method
fan cooling

Engine oil change quantity(L)
1.1

Fuel Type
Gasoline

Fuel Grade
92#

Theoretical fuel consumption(L/h)
0.5-1.2

Hydraulic
system
Main pump type/model
gear pumps/06

Main pump brand
(Tianjin Xingzou)

Rated set pressure(Mpa)
16

Maximum flow rate of main pump(L/min)
21.6

Multi-way valve
8 multi-way valves

Brand of Multi-way valve
(Bei Fang)

Rated Set Pressure(Mpa)
16

Hydraulic Linear Motor type
BM6-310

Linear Motor Brand
(Li Yuan)

Hydraulic Servo Motor type
BM2-250

Excavator tracks
△-Rubber (bandwidth*pitch*number of sections)
180*72*37

Configuration
Cab
√

Roof
×

Handrail
×

Thumb Clip
√

Counterweight
×

Tensioning Forms
Mechanical tensioning

Air Conditioning
×

Fuel tank
Fuel tank(L)
6.6

Hydraulic oil tan（L）
