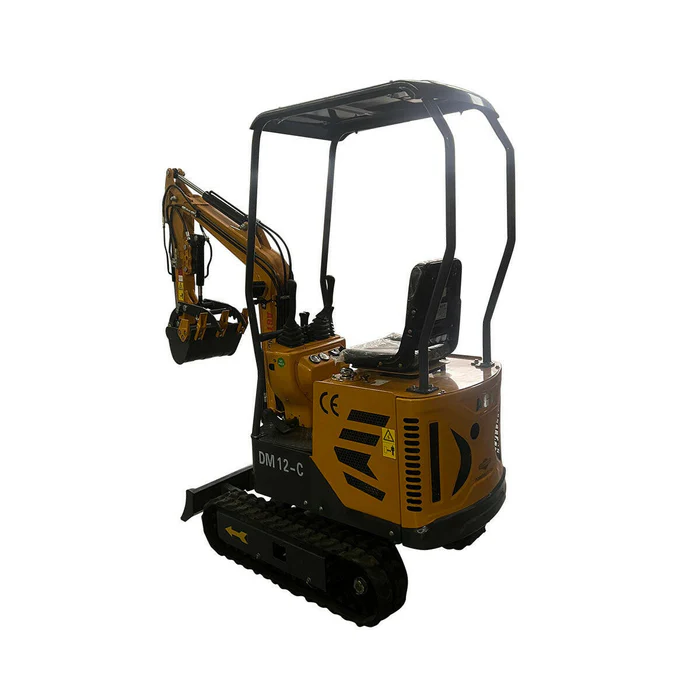

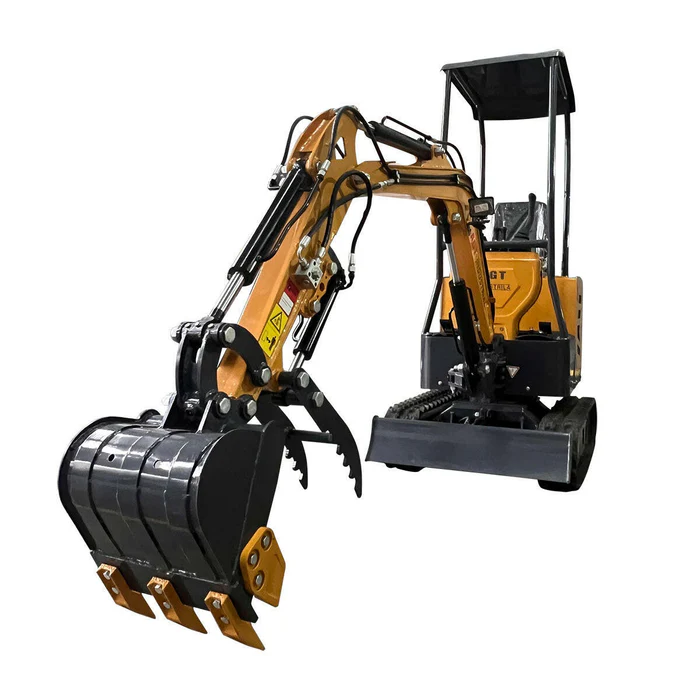

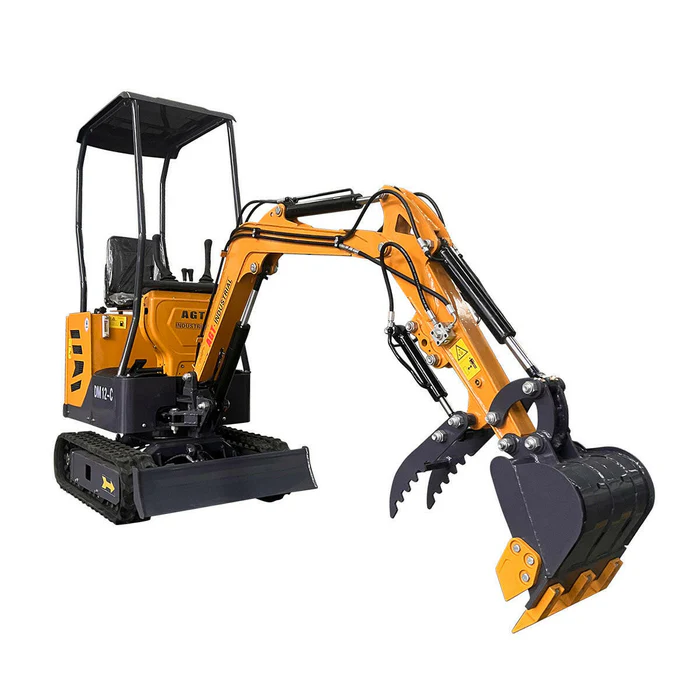

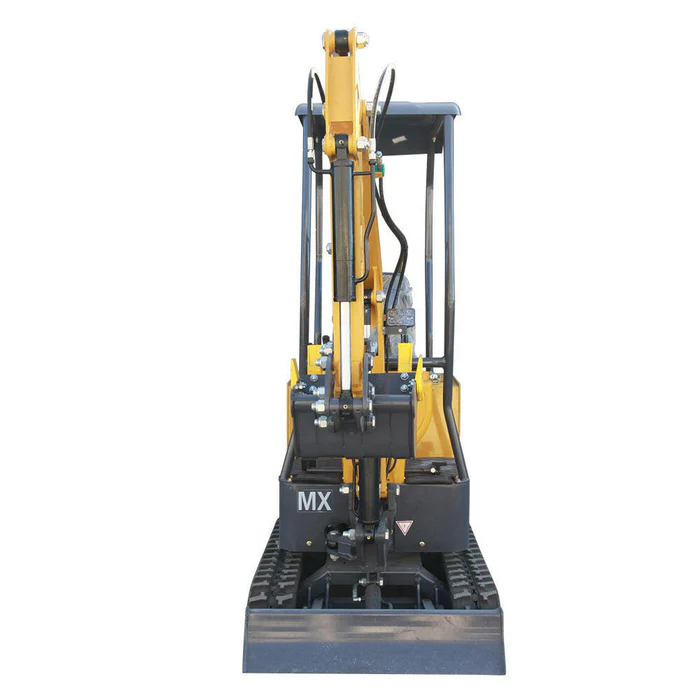

1 Ton, 13.5 HP Gasoline Engine (B&S) Mini Excavator w/ Hydraulic Thumb & Side Swing Boom | DM12-C

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT’s lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.
Technical Data:

Operation Weight: 0.959 Ton
Engine: B&S
Horse Power: 13.5
Max Angle: 30 Degree

Specific Data:

Transport Length: 2260 mm
Transport Width: 958 mm
Transport Height (Including Ceiling): 2200 mm
Bucket Width: 359 mm
Fuel Tank Capacity: 6.6 L
Hydraulic Oil Tank Capacity: 18 L
Machine Working Weight: 1918 lbs
Engine Brand: B&S
Bucket Capacity: 0.025 m³
Walking Speed (Low/High): 0-2 km/h
Climbing Ability: 30%
Grounding Specific Pressure: 32 Kpa
Maximum Digging Radius: 3080 mm (121.26 in)
Maximum Digging Depth: 1764 mm (69.45 in)
Maximum Digging Height: 2670 mm (105.12 in)
Maximum Unloading Height: 1900 mm (74.8 in)
Engine Model: 13.5 HP
Maximum Horsepower: 13.3 ps
Maximum Power: 9.8 kW

Hydraulic System:

Rated Set Pressure: 16 MPa
Max. Flow Rate of Main Pump: 21.6 L/min
Multi-Circuit Valve: 8 Multiway Valve
Multiway Valve Brand: North
Max. Set Pressure: 16 MPa
Traveling Hydraulic Motor Type: BM6-310
Traveling Motor Brand: IC Base
Motor Displacement: 310
Rotary Hydraulic Motor Type: BM2-250
Tensioning Form: Mechanical Tension
