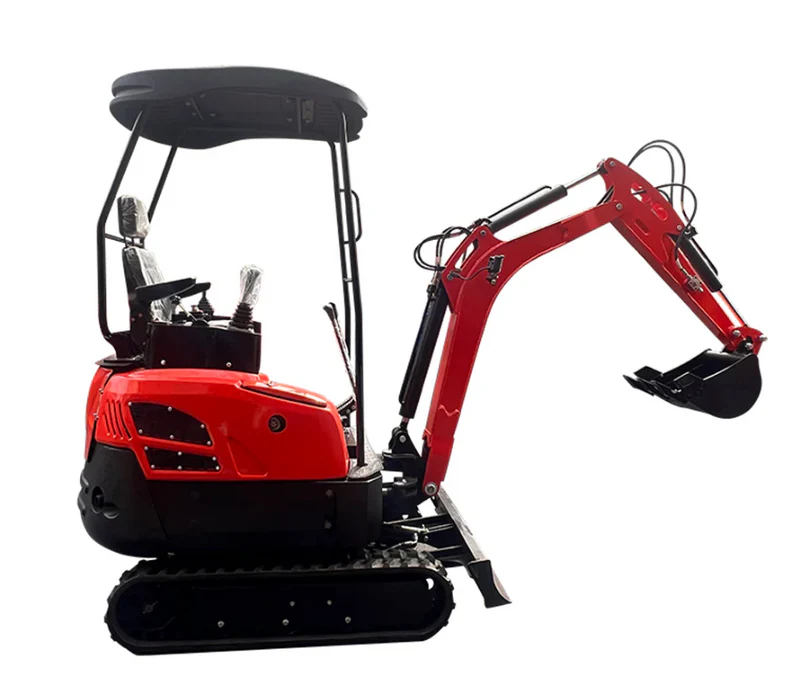

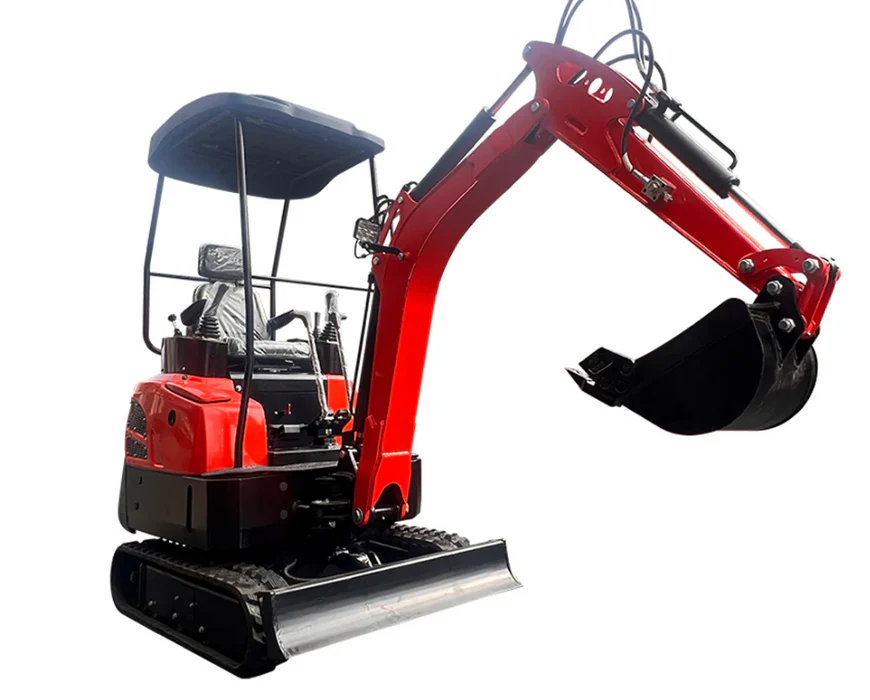

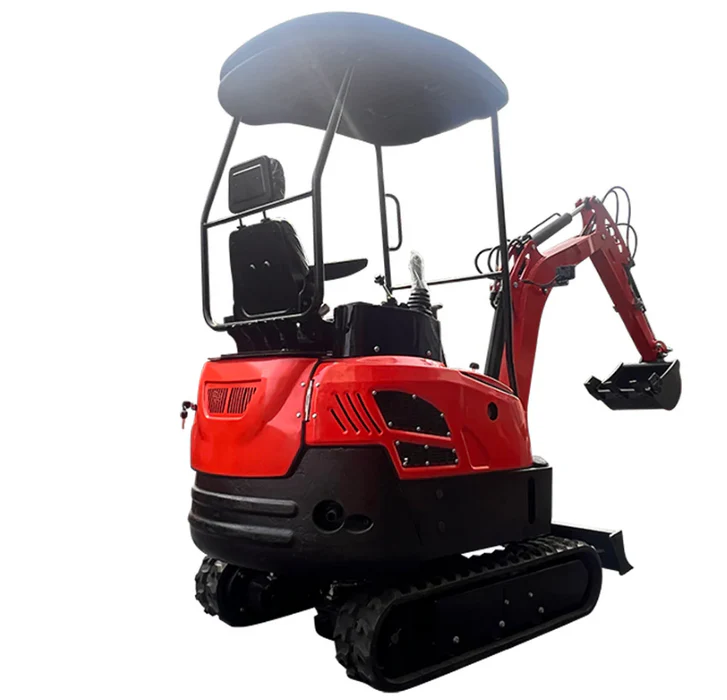

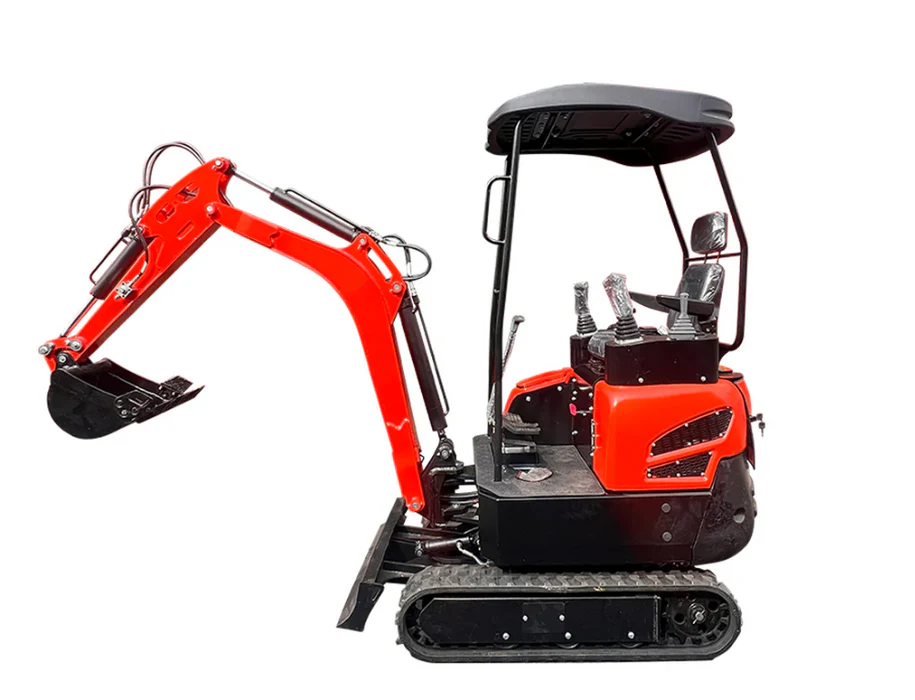

1.4 ton, Kubota Diesel Engine Mini & Small Excavator w/ Side Swing Boom | NT18

Compact and reliable, the 1.4-ton AGT Mini Excavator offers a 6.96-foot digging depth, air conditioning, a side-swing feature, and an enclosed cab for comfort and dust-free operation, making it ideal for farms, gardens, parks, and tight spaces.
Technical Data:

Operation Weight: 1.4 Ton
Engine: Kubota Diesel

Specific Data:

Total Working Weight: 1370 kg
Bucket Capacity: 0.04 m³
Traveling Speed (Low/High): 0-2.0 km/h
Climbing Capacity: 35%
Ground Pressure: 32 KPa

Digging Performance:

Maximum Digging Radius: 3350 mm
Maximum Digging Depth: 2120 mm
Maximum Digging Height: 3025 mm
Maximum Unloading Height: 2245 mm

Hydraulic System:

Hydraulic Output: 2-way/M16H
Side Swing: Left 52° / Right 27°
Main Pump Type/Model: Gear Pump / 10+03
Maximum Flow Rate of Main Pump: 28.5 L/min
Multi-way Valve: 10-connection hydraulic multi-way
Rated Set Pressure: 18 MPa
Maximum Set Pressure: 18 MPa
Traveling Hydraulic Motor Type: BM6K-390
Motor Displacement: 390
Rotary Hydraulic Motor Type: BM2-315
Tensioning Type: Mechanical Tensioning

Tracks & Dimensions:

Rubber Track (Bandwidth × Pitch × Number of Links): 180 × 72 × 41
Transportation Length: 3400 mm
Transportation Width: 1100 mm
Transportation Height with Canopy: 2280 mm
Ground Clearance of Upper Plate: 440 mm
Bucket Width: 385 mm
Bulldozer Width: 1100 mm

Engine Specifications:

Engine Brand: Kubota
Engine Model: D722
Maximum Power: 10.2 kW
Maximum Speed: 2850 rpm
Displacement: 719 CC
Number of Cylinders: 3
Cooling Method: Water-cooled

Fuel & Oil System:

Engine Oil Change Capacity: 3.8 L
Fuel Type: Diesel
Fuel Grade: 0#
Fuel Tank Capacity: 6.7 L
Hydraulic Oil Tank Capacity: 18 L
Theoretical Fuel Consumption: 4–5 L/h
Oil Type: CF-4
