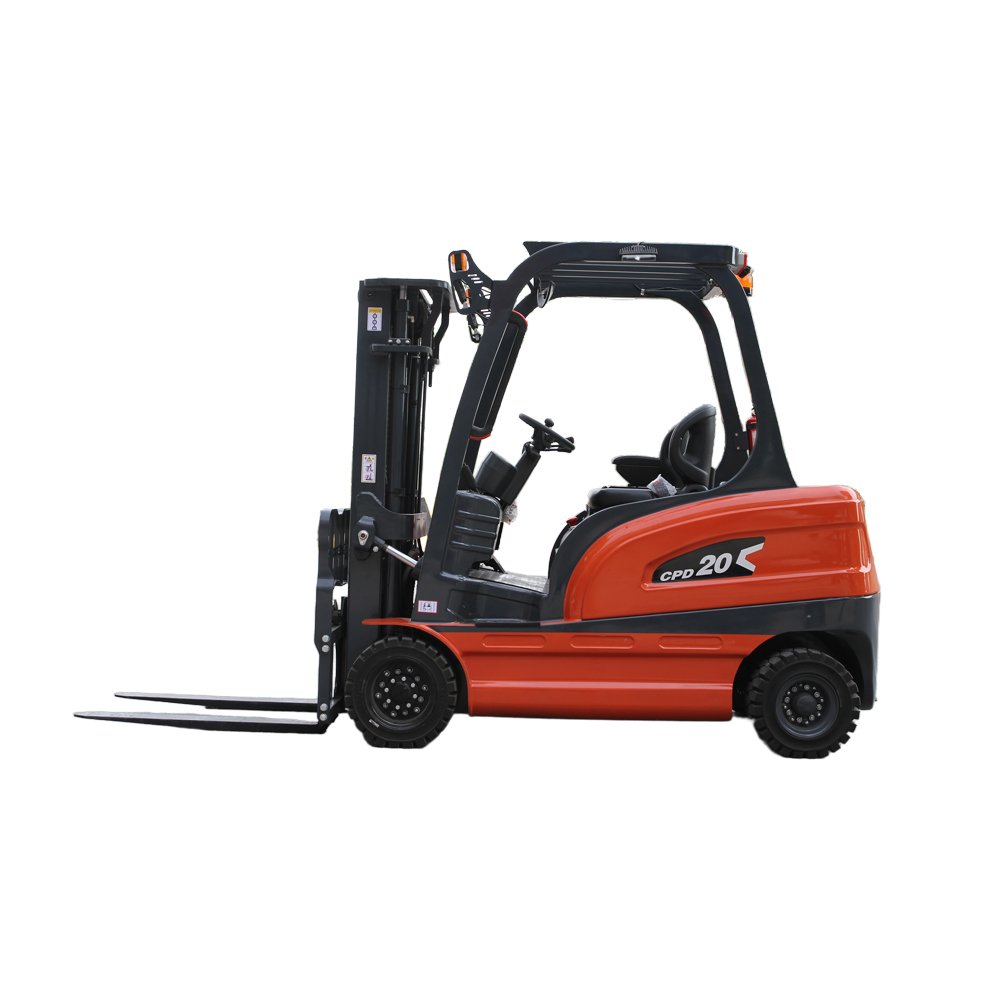

CPD20 forklift is an electric counterbalanced forklift with powerful performance and practical design. With a rated load of 2000kg, it can easily cope with the needs of heavy cargo handling. The compact body design and small turning radius enable it to flexibly turn and shuttle freely in narrow warehouses, workshops and other spaces; at the same time, the excellent lifting height meets the needs of multi-layer cargo stacking operations.
The advanced electric drive system is not only green and environmentally friendly, but also has the characteristics of high efficiency and energy saving. Some models are equipped with an intelligent battery management system, which can effectively extend the battery life and service life, and ensure long-term stable operation.
In terms of configuration and operating experience, the CPD20 forklift also performs well. The cab follows the ergonomic design, the operation interface is simple and intuitive, and the layout of various control handles is reasonable. With a comfortable seat and good vision, the driver’s fatigue is greatly reduced.
Its driving and lifting speeds are adapted to a variety of working conditions, effectively improving operating efficiency; the maintenance-free AC motor and fully sealed battery equipped reduce the cost and frequency of later maintenance. In addition, safety devices such as reversing images and anti-collision warnings can be installed according to needs to ensure all-round operation safety. It is suitable for a variety of material handling scenarios such as warehousing logistics and manufacturing.
CPD20 electric counterbalanced forklift, with a 2000kg rated load, excels in heavy – duty cargo handling. Its compact build and small turning radius allow for agile maneuvering in tight spaces, while the impressive lift height supports multi – layer stacking. Powered by an efficient, eco – friendly electric system with intelligent battery management, it ensures extended operation. Ergonomically designed for reduced driver fatigue, it offers optimal speeds for various tasks. With low – maintenance components like a maintenance – free AC motor and sealed battery, plus optional safety features, it’s ideal for warehousing, logistics, and manufacturing.
Technical Parameter
1.1
Model No.:
CPD20
1.2
Power type
Electric
1.3
Operation type
Saddle-type
1.4
Load
Q
kg
2000
1.5
Load center distance
C
mm
500
1.6
Front overhang
X
mm
340
1.7
Wheelbase
y
mm
1610
2.1
Weight (including battery)
kg
2800±100
3.1
Tire type, drive wheel/steering wheel
Solid tire
3.2
Drive wheel size (diameter x width)
mm
18X7-10
3.3
Steering wheel size (diameter x width)
mm
18X7-8
3.4
Drive wheel, number of steering wheels (x = drive wheel)
mm
2X/2
3.5
Drive wheel track
b10
mm
960
3.6
Steering wheel track
b11
mm
950
4.1
Mast and fork tilt angle
α/ β (°)
6/10
4.2
Mast height after lowering
h1
mm
2150
4.3
Maximum lifting height of standard mast
h3
mm
3000
4.4
Mast height when lifted to the highest level
h4
mm
3960
4.5
Head guard (cockpit) height
h6
mm
2120 (without lights)
4.6
Seat surface height
h7
mm
1120
4.7
Height of towing pin center
h10
mm
510
4.8
Vehicle length
l1
mm
3440
4.9
Length to vertical surface of fork
l2
mm
2330
4.10
Overall width
b1/ b2
mm
1100
4.11
Fork size
s/ e/ l
mm
40X100X1070
4.12
Fork frame outer width
b3
mm
1040
4.13
Ground clearance of lower end of fully loaded mast
m1
mm
110
4.14
Minimum ground clearance of vehicle body
m2
mm
80
4.15
Aisle width of pallet is 1200 wide x 1000 long
Ast
mm
3800
4.16
Aisle width of pallet is 800 wide x 1200 long
Ast
mm
4000
4.17
Turning radius
Wa
mm
2190
5.1
Travel speed, fully loaded/unloaded
km/ h
10/12
5.2
Lifting speed, fully loaded/unloaded
m/ s
0.24/0.3
5.3
Lowering speed, fully loaded/unloaded
m/ s
0.36/ 0.32
5.4
Maximum climbing grade , full load/no load
%
15
5.5
Service brake type
Hydraulic + mechanical
5.6
Parking brake type
Mechanical
6.1
Drive motor rated power S2 60 minutes
kW
5.5
6.2
Lifting motor rated power S3 15%
kW
5.5
6.3
Battery voltage/nominal capacity K5
Ah
6.4
Drive control type
AC
