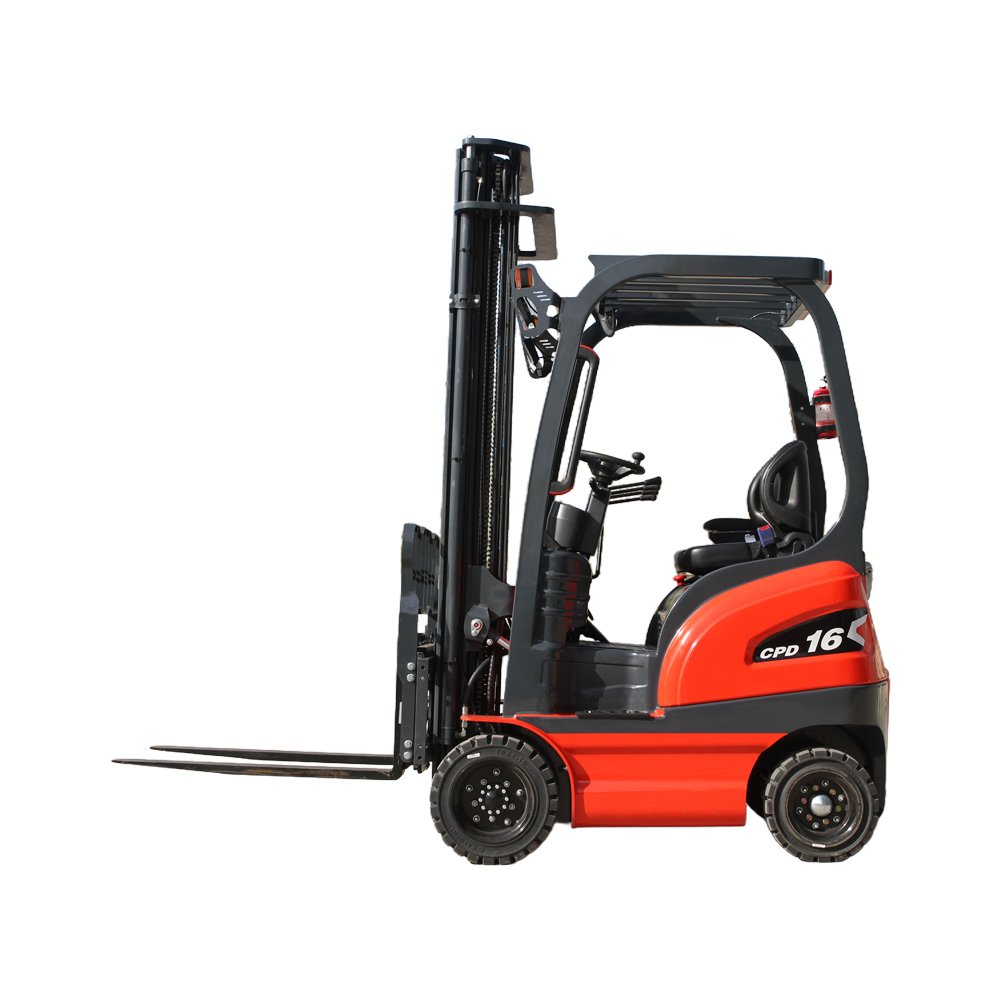

As a practical and efficient handling equipment, the CPD16 forklift has significant advantages. It has a rated load capacity of 1600kg, which can meet many material handling needs. In terms of design, the vehicle is relatively compact.
For example, the minimum turning radius of some models is only 1860mm, which can flexibly turn and operate in narrow warehouse lanes, factory workshops and other spaces. At the same time, its lifting height can reach 3000mm, which is convenient for cargo stacking.
The power source is mainly electricity. Some models are equipped with advanced battery technology. For example, the lithium iron phosphate battery used in BYD CPD16L forklift is not only green and environmentally friendly and compliant with RoHS regulations, but also with BMS battery management system, which can effectively extend the battery life.
In terms of configuration and performance, the CPD16 forklift is also excellent. The interior design of the cab is ergonomic, such as the comfortable fingertip control system and double pedal design, which greatly improves the convenience of operation. In terms of driving speed, some models can reach 16km/h when empty and fully loaded, ensuring operating efficiency.
In addition, the maintenance of the forklift is also relatively convenient. The AC motor of some models is maintenance-free, which reduces the maintenance cost such as carbon brush replacement. The fully sealed battery design does not require additional maintenance, saving manpower and material resources. Moreover, it can also be equipped with reversing voice, reversing image and other devices according to needs to further improve the safety of operation.
Technical Parameter
Model No.
CPD16
Power type
Electric
Operation type
Saddle-type
Load
Q
kg
1600
Load center distance
C
mm
500
Front overhang
X
mm
340
Wheelbase
y
mm
1470
Weight (including battery)
kg
2300±100
Tire type, drive wheel/steering wheel
Solid tire
Drive wheel size (diameter x width)
mm
18X7-10
Steering wheel size (diameter x width)
mm
16X6-8
Drive wheel, number of steering wheels (x = drive wheel)
mm
2X/2
Drive wheel track
b10
mm
950
Steering wheel track
b11
mm
920
Mast and fork tilt angle
α/ β (°)
6/10
Mast height after lowering
h1
mm
2150
Maximum lifting height of standard mast
h3
mm
3000
Mast height when lifted to the highest level
h4
mm
3960
Head guard (cockpit) height
h6
mm
2120 (without lights)
Seat surface height
h7
mm
1080
Height of towing pin center
h10
mm
500
Vehicle length
l1
mm
3305
Length to vertical surface of fork
l2
mm
2200
Overall width
b1/ b2
mm
1100
Fork size
s/ e/ l
mm
35X100X1070
Fork frame outer width
b3
mm
1040
Ground clearance of lower end of fully loaded mast
m1
mm
110
Minimum ground clearance of vehicle body
m2
mm
100
Aisle width of pallet is 1200 wide x 1000 long
Ast
mm
3360
Aisle width of pallet is 800 wide x 1200 long
Ast
mm
3560
Turning radius
Wa
mm
1985
Travel speed, fully loaded/unloaded
km/ h
10/12
Lifting speed, fully loaded/unloaded
m/ s
0.24/0.3
Lowering speed, fully loaded/unloaded
m/ s
0.35/ 0.32
Maximum climbing grade , full load/no load
%
15
Service brake type
Hydraulic + mechanical
Parking brake type
Mechanical
Drive motor rated power S2 60 minutes
kW
5
Lifting motor rated power S3 15%
kW
5
Battery voltage/nominal capacity K5
Ah
Drive control type
AC
