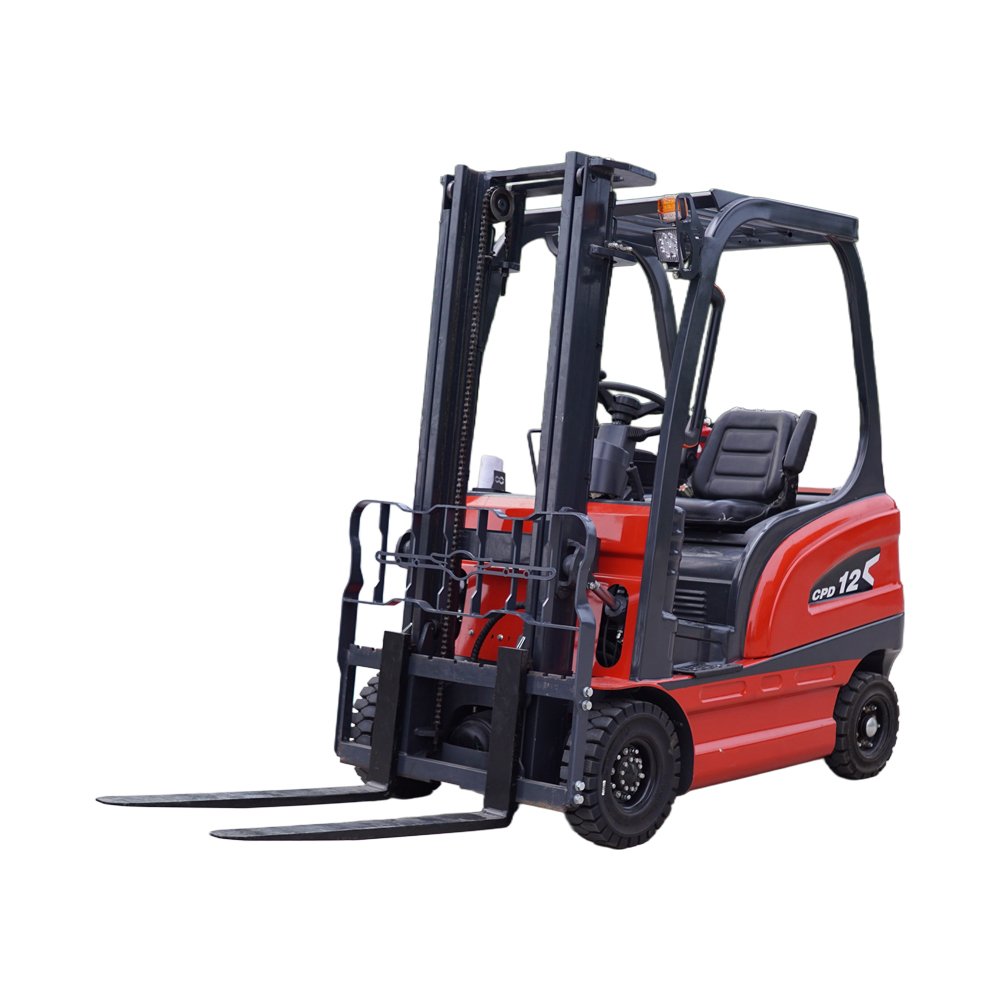

Tonghao CPD12 Electric Forklift

Tonghao CPD12 forklift has outstanding performance and design. Its main mast uses 12# steel channel, is equipped with an integrated high-quality forged fork and has a forward and backward tilt function, which not only ensures high strength and stability, but also helps the operator to accurately stack goods.





The vehicle reserves space for battery expansion, which can be adjusted according to the workload to meet the needs of long-term operations. At the same time, the high-strength acrylic protective plate at the mast,



the protective arms on both sides of the driver’s seat, the emergency reverse switch on the control handle, and the lifting electric limit and high cargo speed limit devices, etc., all build a comprehensive safety protection system, and the pedal is equipped with a shock absorber to bring a comfortable operating experience.



In terms of configuration parameters, the CPD12 forklift has a rated load capacity of 1200kg and a load center distance of 400mm. Its full-load travel speed is 5.2km/h, empty-load is 5.5km/h, full-load lifting speed is 95mm/s, empty-load is 130mm/s, full-load lowering speed is 105mm/s, empty-load is 100mm/s.



In addition, different brands of CPD12 forklifts have their own characteristics in details. Some models have variable wheelbase design, EPS electronic steering, cornering deceleration and other functions, which can operate flexibly in narrow spaces and are suitable for warehousing, logistics, manufacturing and other scenarios, effectively improving the efficiency and safety of material handling.





Technical Parameter

1.1
Model

CPD12

1.2
Power type

Electric

1.3
Operation type

Saddle-type

1.4
Load
0
kg
1200

1.5
Load center distance
丁
mm
500

1.6
Front overhang
X
mm
290

1.7
Wheelbase
y
mm
1400

2.1
Weight (including battery)

kg
1700

3.1
Tire type, drive wheel/steering wheel

Solid tire

3.2
Driving wheel size (diameter x width)

mm
500-8

3.3
Steering wheel size (diameter x width)

mm
500-8

3.4
Driving wheel, number of steering wheels (x=driving wheel)

mm
2X/2

3.5
Driving wheel track
b10
mm
950

3.6
Steering wheel track
b11
mm
920

4.1
Mast and fork tilt angle
α/β(°)

1212122025年5月9日

4.2
Mast height after lowering
h1
mm
2150

4.3
Maximum lifting height of standard mast
h3
mm
3000

4.4
Mast height when lifting to the highest position
h4
mm
4000

4.5
Head guard (cockpit) height
h6
mm
2050

4.6
Seat surface Height
h7
mm
1030

4.7
Height of the center of the traction pin
h10
mm
460

4.8
Length of the vehicle
I1
mm
3170

4.9
Length to the vertical plane of the fork
12
mm
2060

4.1
Overall width
b1/ b2
mm
1100

4.11
Fork size
s/e/1
mm
40X80X1070

4.12
Fork frame outer width
b3
mm
1040

4.13
Ground clearance of the lower end of the fully loaded mast
m1
mm
110

4.14
Minimum ground clearance of the vehicle body
m2
mm
100

4.15
Aisle width of the pallet is 1200 wide x 1000 long
Ast
mm
3280

4.16
Aisle width of the pallet is 800 wide x 1200 long
Ast
mm
3480

4.17
Turning radius
Wa
mm
1780

5.1
Travel speed, fully loaded/unloaded

km/h
1212122025年10月12日

5.2
Lifting speed, fully loaded/unloaded

m/s
0.24/0.3

5.3
Descending speed, fully loaded/unloaded

m/ s
0.4/0.36

5.4
Maximum climbing grade, fully loaded/unloaded

%
14/15

5.5
Service brake type

Hydraulic + mechanical

5.6
Parking brake type

Mechanical

6.1
Drive motor rated power S260 minutes

kw
4

6.2
Lifting motor rated power S315%

kw
4

6.3
Battery voltage/nominal capacity K5

ah

6.4
Drive control type

AC
