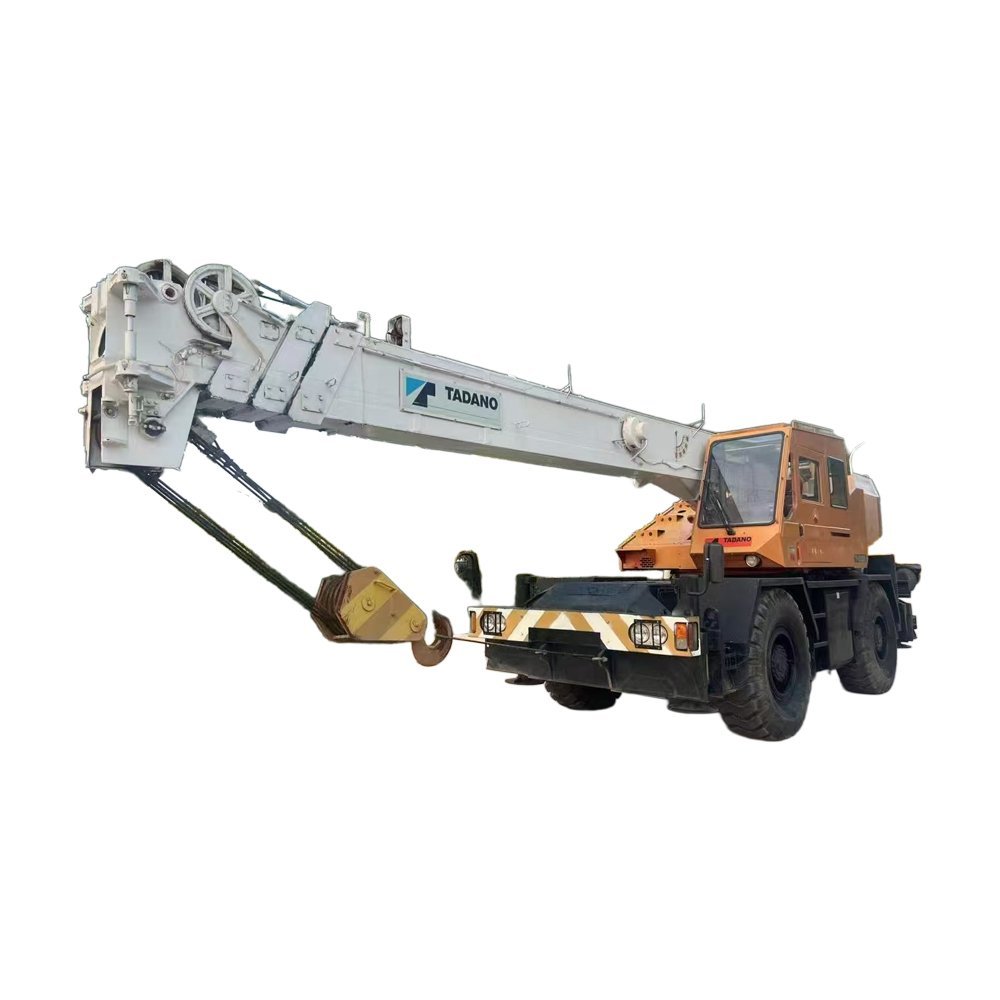

Tadano 25 tons crane

Tadano 25 ton crane is a high-performance lifting equipment with a rated lifting capacity of 25 tons. It is equipped with a 4-section main arm (up to 31.3 meters) and a truss-type jib (up to 7.5 meters). The maximum lifting height is 44.2 meters, which can meet the needs of high-altitude operations and large-span lifting.











It is equipped with a Hino J08E engine (196kW) or an electric power system. The traditional fuel model has a maximum speed of 72km/h. The electric model eGR-250N uses a 226kW・h lithium battery and has a pure electric lifting life of 11 hours.

#image_1947995147 { width: 89%; } @media (min-width:550px) { #image_1947995147 { width: 40%; } } @media (min-width:850px) { #image_1947995147 { width: 36%; } }

It has both efficient transfer and environmental protection performance. The outrigger span is optimized to 5.8×4.6 meters, and safety devices such as torque limiters and hydraulic locks are used to ensure operational stability.





This model integrates energy-saving technology. The fuel version reduces fuel consumption by 4.4% compared to the previous generation, and the electric version achieves zero emissions, which is suitable for scenes such as construction, bridge construction, and equipment installation. The cab is equipped with a radio control function, which supports remote operation of the outriggers and booms, improving convenience.





The machine adopts a lightweight design (weighing about 28-30 tons), has a compact body (11.5-12 meters long) and flexible maneuverability, and can adapt to narrow site operations. It is a reliable choice for medium and large projects.







Technical Parameter


Parameter Category
Specific Parameter

Maximum Rated Lifting Capacity
25000kg

Number of Main Boom Sections
4 sections (hexagonal box boom)

Number of Jib Sections
1 section (truss jib)

Main Boom Length Range
9.87 – 30.13m

Jib Length
7.5m

Maximum Lifting Speed of Main Winch
96m/min

Slewing Speed
2.5r/min

Chassis Model
BCW5272JQZD252

Engine Model
WD615.61A

Maximum Power of the Engine
193kW/2200r/min

Maximum Driving Speed
72km/h

Minimum Turning Radius
10m

Maximum Gradient
43%

Overall Length of the Machine
11990mm

Overall Width of the Machine
2500mm

Overall Height of the Machine
3345mm

Outrigger Span
5.8m*4.6m

Total Weight
28100kg
