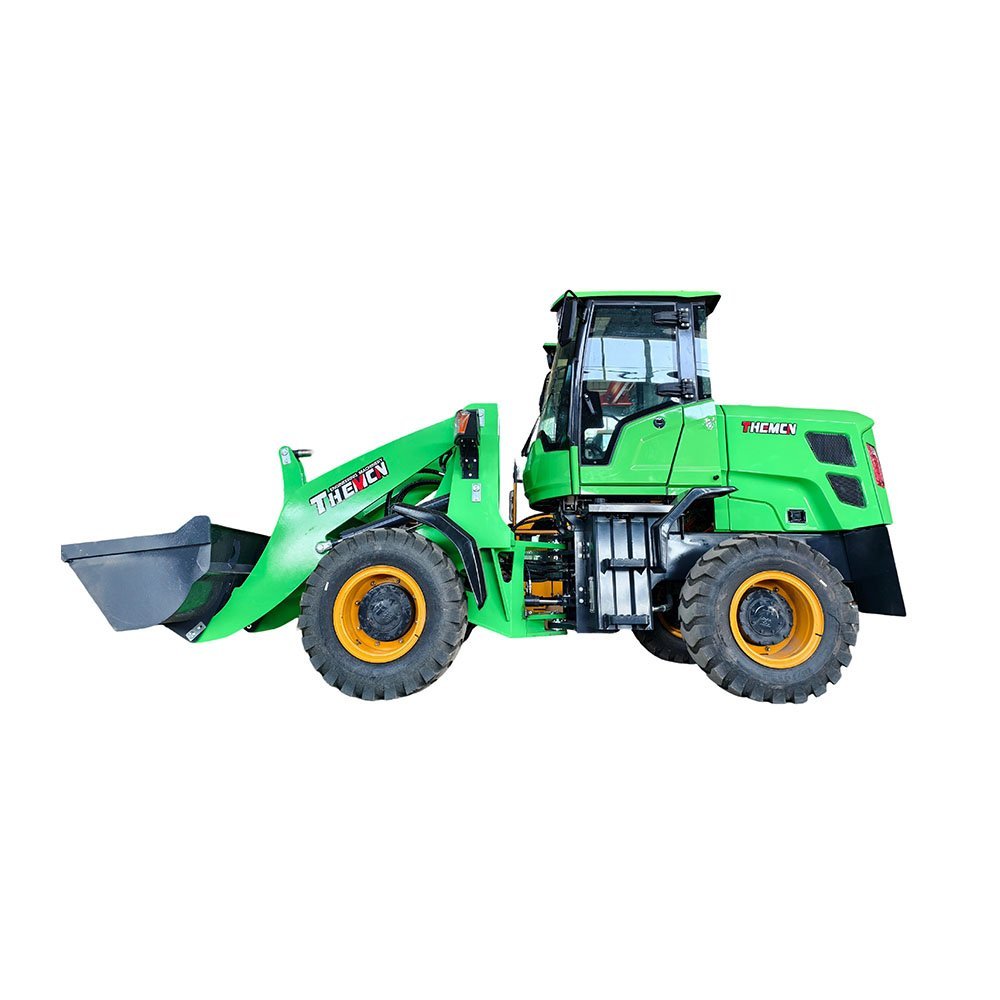

The 2000EV lithium iron phosphate loader is designed for efficient operation. With a rated load of 2000 kg and a bucket capacity of 0.7 cubic meter, it can efficiently complete material loading tasks. This makes it a powerful and reliable choice for various construction and industrial applications.
The 2000EV lithium iron phosphate loader has a dumping height of 3500 mm and a dumping distance of 820 mm, which can flexibly cope with different dumping scenarios. It is equipped with full-time four-wheel drive and a motor-driven gearbox, which is easy to operate and provides reliable support for various engineering operations.
The 2000EV lithium iron phosphate loader is exquisitely designed, weighs 5300 kg, and has an overall size of 5829*2000*2750 mm. The loader is equipped with 16/70-20 tires and a minimum ground clearance of 310 mm to ensure good passability. The steering angle is 35° and the minimum turning radius is only 3089 mm, which enable it to be flexibly manipulated in narrow spaces and has higher operating efficiency. This design enables it to adapt to various challenging working environments.
The 2000EV lithium iron phosphate loader is designed for long-range operation. It uses advanced lithium iron phosphate battery technology with a capacity of 70 kWh and a voltage of 153.6 volts. This configuration allows a range of 6 to 8 hours, meeting the needs of long-term operations.
The 2000EV lithium iron phosphate loader is equipped with a 153.6-volt 100-amp charger, which can fully charge the battery in 4 hours used a 380-volt power supply. It is equipped with an 18-kilowatt drive motor and oil pump motor, providing strong and lasting power for efficient and reliable operation.
Technical Parameter
Specific Parameter
Value
Unloading Height
3500mm
Rated Load
2000kg
Bucket Capacity
0.7 cubic meters
Unloading Distance
820mm
Overall Machine Weight
5300kg
Overall Dimensions (Length * Width * Height)
5829*2000*2750 (mm)
Tire Specification
16/70 – 20
Minimum Ground Clearance
310mm
Wheelbase
2550mm
Track Width
1600mm
Steering Angle
35°
Minimum Turning Radius (Outer Edge of Tire)
3089mm
Transmission Type
Full – time 4 – wheel drive, motor – driven transmission
Number of Gears
Electric – controlled gears, one forward, one reverse, with running gear, 4 gears in total
Maximum Speed
19 km/h
Three – in – one Time
10s
Axle
Large wheel – side axle, hydraulic brake
Battery Type
Lithium Iron Phosphate
Battery Brand
Random
Battery Capacity
70 kwh
Battery Voltage
153.6V460H
Endurance Time
6 – 8h
Charger Configuration
153.6V100A
Charger Power Supply Voltage
380V
Full – Charge Time
4h
Drive Motor Power
18 kilowatts
Oil Pump Motor Power
18 kilowatts
