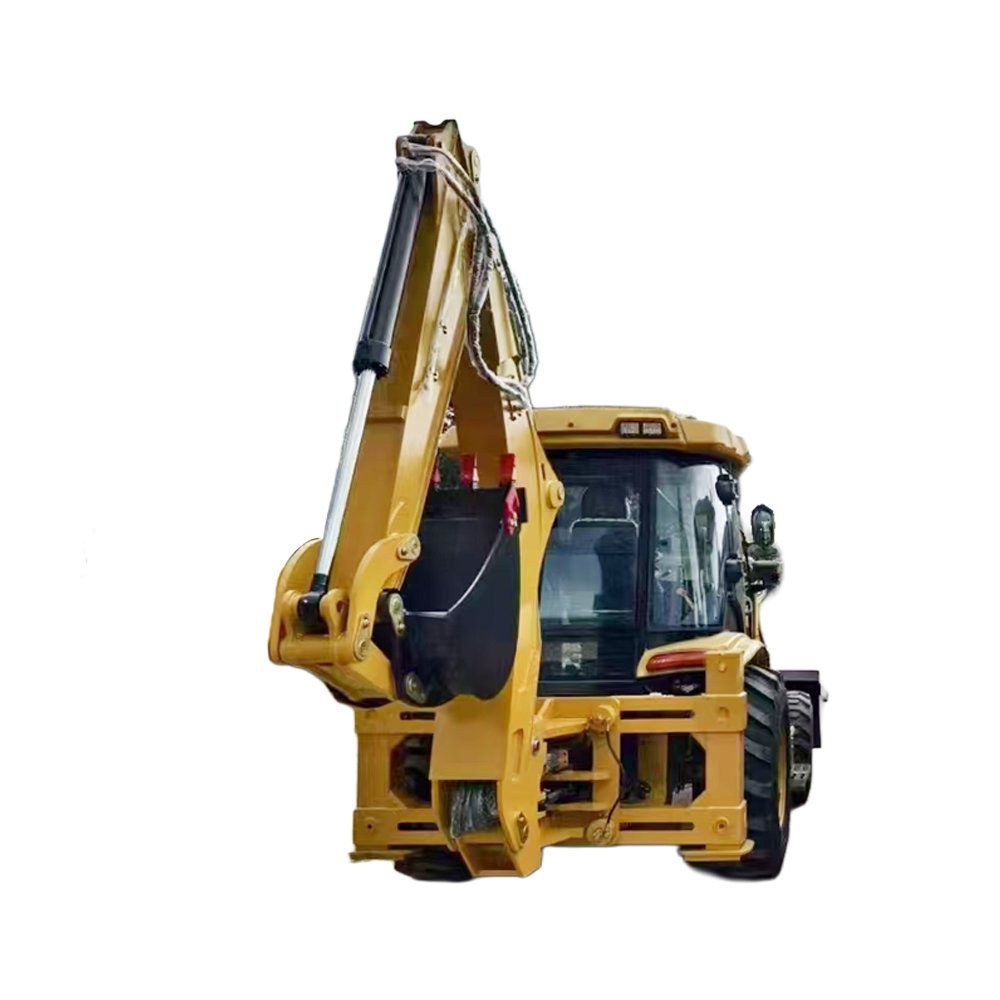

JCB 3CX Backhoe Loader

The JCB 3CX loader is carefully built by JCB, a company with a long history. Since its establishment in 1945, JCB has been constantly innovating and has now developed into a large multinational company capable of producing more than 270 equipment models. As one of its classic products, the 3CX loader has been widely used in various engineering scenarios due to its excellent performance and design.









In terms of power and operating performance, the 3CX loader is equipped with a JCB 3CX engine with a rated power of 63 kW/2200 rpm, a maximum torque of 320 Nm/1200 rpm, and a displacement of 4.4 liters. Combined with a stable cooling system, it is able to output power stably in harsh environments. At the loading end, a general bucket and a six-in-one loading bucket are provided, and buckets of different capacities and unloading parameters can meet diverse operational needs. Its steering is precise, the tires have strong grip, and the four-speed gearbox enables it to travel quickly and improve transfer efficiency. The size and operating weight of the whole machine ensure flexibility and stability in operation.



3CX loaders attach great importance to user experience. Whether it is an open roof or positive pressure configuration of the spacious cab, it can provide a comfortable working space. The ergonomically arranged controls and JCB suspension seat reduce operator fatigue. In terms of maintenance, the innovative automatic inspection system can quickly complete daily inspections. The integrated engine hood, front battery and external hydraulic tank make maintenance work safe and convenient, effectively reducing costs and extending the efficient operation time of the equipment.





Technical Parameter



Classification
Details

Brand
JCB

Model
3CX

Type
Backhoe loader (两头忙)

Engine Model
JCB 3CX

Rated Power (Kw/rpm)
63/2200

Maximum Torque (Nm/rpm)
320/1200

Displacement (L)
4.4

Cooling System
Hot climate configuration, pre-pressurized suction fan, standby water tank with pre-pressure, natural aspiration

Main Pump Type
Gear pump

Maximum System Flow (L/min)
73 + 51

System Working Pressure (bar)
251

Gearbox Model
JCB 3CX

Diameter of Torque Converter (mm)
305

Torque Conversion Coefficient of Torque Converter
3

First Gear Driving Speed (Forward/Reverse) (km/hr)
5.5/5.6

Second Gear Driving Speed (Forward/Reverse) (km/hr)
8.9/9.0

Third Gear Driving Speed (Forward/Reverse) (km/hr)
19.1/19.2

Fourth Gear Driving Speed (Forward/Reverse) (km/hr)
34.8/34.8

Steering Diameter (with Braking) (m)
8.1/10.4

Steering Diameter (without Braking) (m)
6.9/9.5

Front Tire Size
12.5×18

Rear Tire Size
18.4×26

Fuel Tank Capacity (L)
160

Hydraulic System including Tank Capacity (L)
132

Gearbox including Filter Capacity (L)
16

Engine Oil and Filter Capacity (L)
15

Cooling System Capacity (L)
18.5

Front Axle Capacity (L)
16

Rear Axle Capacity (L)
16

Total Length in Driving State (mm)
5620

Total Width in Driving State (mm)
2360

Total Height in Driving State (mm)
3610

Cab Top Height (mm)
2870

Steering Wheel Center Height (mm)
1940

Loader Bucket Width (mm)
2350

Wheelbase (mm)
2170

Loader Bucket Type
Universal loader bucket/Combination loader bucket

Loader Bucket Capacity (m³)
1.0/1.1 (Universal loader bucket)/1.0 (Combination loader bucket)

Maximum Dumping Height (mm)
2740 (Universal loader bucket)/2720 (Combination loader bucket)

Maximum Dumping Distance (mm)
830 (Universal loader bucket)/780 (Combination loader bucket)

Operating Weight (kg)
7370
