Key Performance Parameters
Parameter
Unit
Value
Parameter
Unit
Value
Operating Weight
kg
2800
Arm Crowding Force
kN
17
Bucket Capacity
m³
0.07
Bucket Digging Force
kN
21
Engine
–
Yanmar 3TNV-80F
Swing Speed
rpm
9
Engine Power
kW/rpm
14.6/2,400
Working Pressure
MPa
24.5
Hydraulic System
–
Load Sensing
Fuel Tank Capacity
L
31
Hydraulic Pump Type
–
Variable Piston Pump
Hydraulic Tank Capacity
L
28
Machine & Working Dimensions
Parameter
Unit
Value
Max. Digging Height
mm
4160
Max. Dumping Height
mm
2850
Max. Digging Depth
mm
2450
Max. Vertical Digging Depth
mm
1951
Max. Digging Reach
mm
4520
Max. Ground-Level Digging Reach
mm
4410
Min. Front Swing Radius
mm
2135
Min. Rear Swing Radius
mm
700
Boom Offset Angle (Left/Right)
°
60/45
Overall Length
mm
4088
Overall Height
mm
2410
Upper Structure Width
mm
1360
Lower Structure Width
mm
1500
Lower Structure Width (Telescopic Option)
mm
1,360/1,560

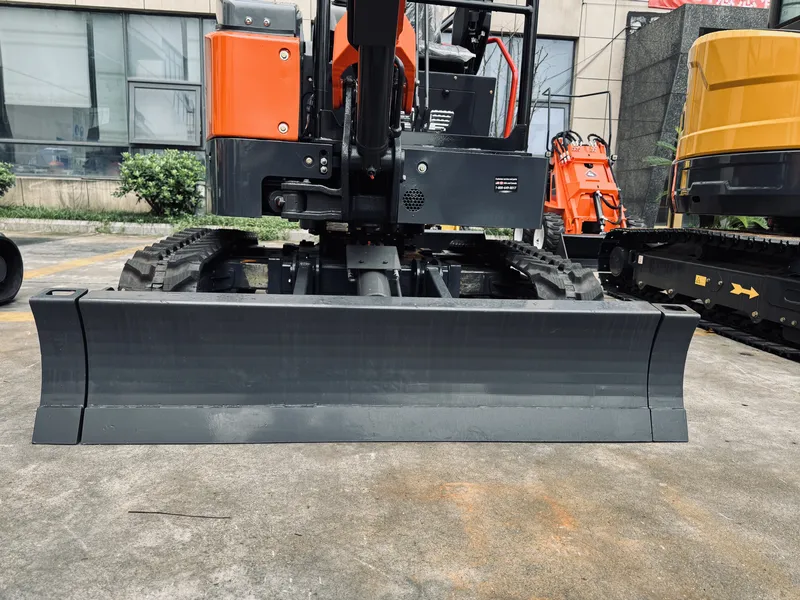

Dozer Blade Height (Raised/Lowered)
mm
350/410
Track Width (Steel/Rubber)
mm
230
Technical Notes
Zero Tail Swing Design: Ultra-compact rear swing radius (700mm) for confined spaces.
Load Sensing Hydraulic System: Automatically adjusts flow for optimal efficiency.
Boom Offset Function: Asymmetric swing range (Left 60° > Right 45°) enhances flexibility.

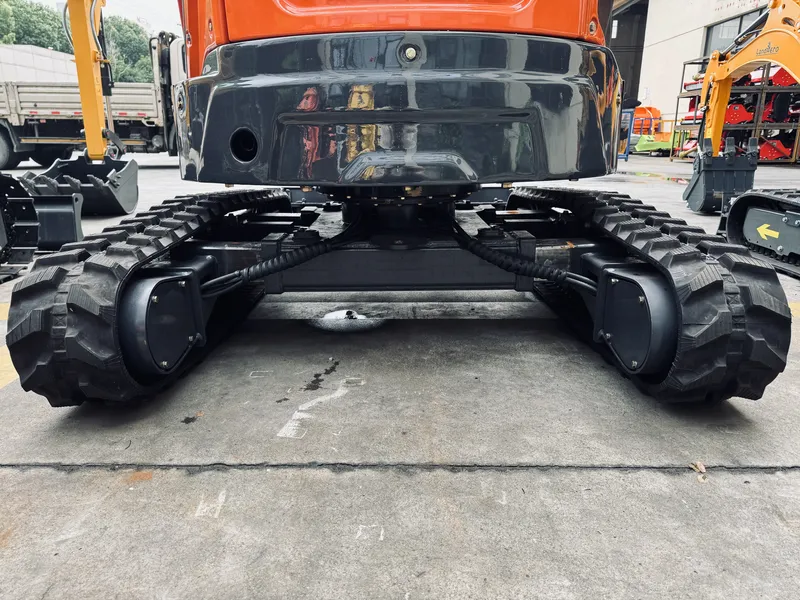

Adjustable Undercarriage: Telescopic lower frame (1,360-1,560mm) adapts to various terrains.
Note: All dimensions are based on standard configuration and may vary with attachments or ground conditions.
