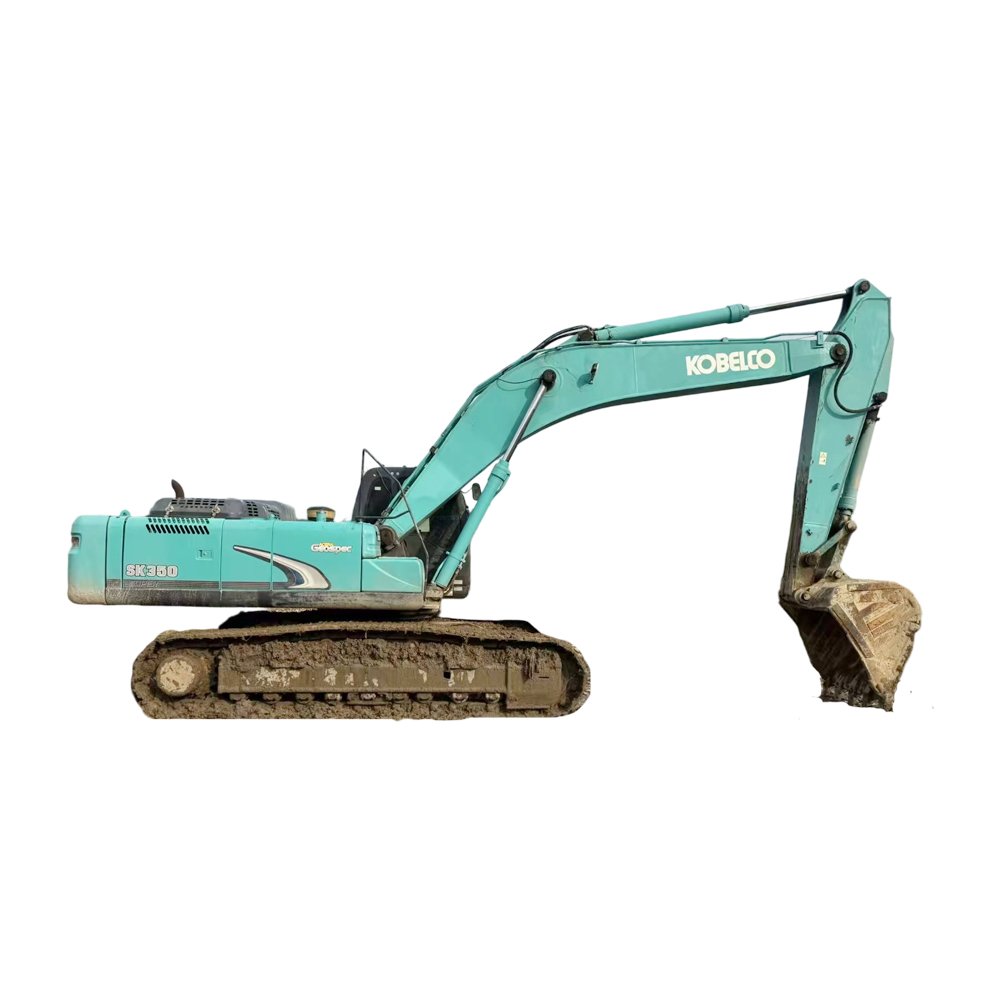

The Kobelco 350 excavator has made a great impression in the engineering field with its excellent performance. The working weight of the whole machine is 34700kg, which belongs to the 35-ton class. It is equipped with a Hino JO8E engine with a rated power of 196.9kW/2100rpm. It is equipped with a hydraulic system of a double variable displacement axial piston pump and a pilot gear pump. The maximum flow of the main pump is 2×294L/min, which is powerful. The bucket capacity is 1.6m³, the bucket digging force is 322kN, the bucket arm digging force is 165kN, the rotation speed is 10rpm, and the travel speed is 5.6/3.3Km/h. The operation is efficient and flexible, and it can adapt to a variety of complex working conditions.
The Kobelco 350 excavator is designed to take into account practicality and convenience. The total transport length is 11200mm, the total width is 3400mm, the total height is 3420mm, and the full height of the cab is 3160mm, with a good field of vision. The track grounding length is 4050mm, the track shoe width is 600/800mm, the grounding pressure is 50.5Kpa, and the driving is stable. The maximum digging radius is 11260mm, the maximum digging depth is 7560mm, and the operating range is wide.
Fuel tank volume is 580L, and the endurance is strong; the hydraulic oil tank is 280L, and the hydraulic oil filter element has excellent durability, which is convenient for maintenance and effectively reduces the cost of use.
#text-2096504121 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0, 0, 0); } #text-2096504121 > * { color: rgb(0, 0, 0); } @media (min-width:550px) {
Technical Parameter
Category
Parameters
Product name
kobelco 350
Engine model
Hino JO8E
rated power
196.9kW/2100rpm
working weight
34700kg
bucket capacity
1.6 cubic meters
arm length
3300mm
rotation speed
10rpm
travel speed
5.6/3.3Km/h
climbing ability
70 (35°)
ground pressure
50.5Kpa
bucket digging force
322kN
arm digging force
165kN
Fuel tank
580L
total transport length
11200mm
total transport width
3400mm
total transport height
3420mm
cab full height
3160mm
counterweight ground clearance
1190mm
track ground length
4050mm
total track length
4980mm
track shoe width
600/800mm
total track width
3200mm
track gauge
2600mm
minimum ground clearance
500mm
minimum turning radius of front working device
4370mm
rear end turning radius
3500mm
Maximum digging radius
11260mm
maximum digging radius at stop surface
11060mm
maximum digging depth
7560mm
maximum digging height
10580mm
maximum unloading height
7370mm
maximum vertical digging depth
6610mm
maximum digging depth (2.5m horizontal)
7400mm
