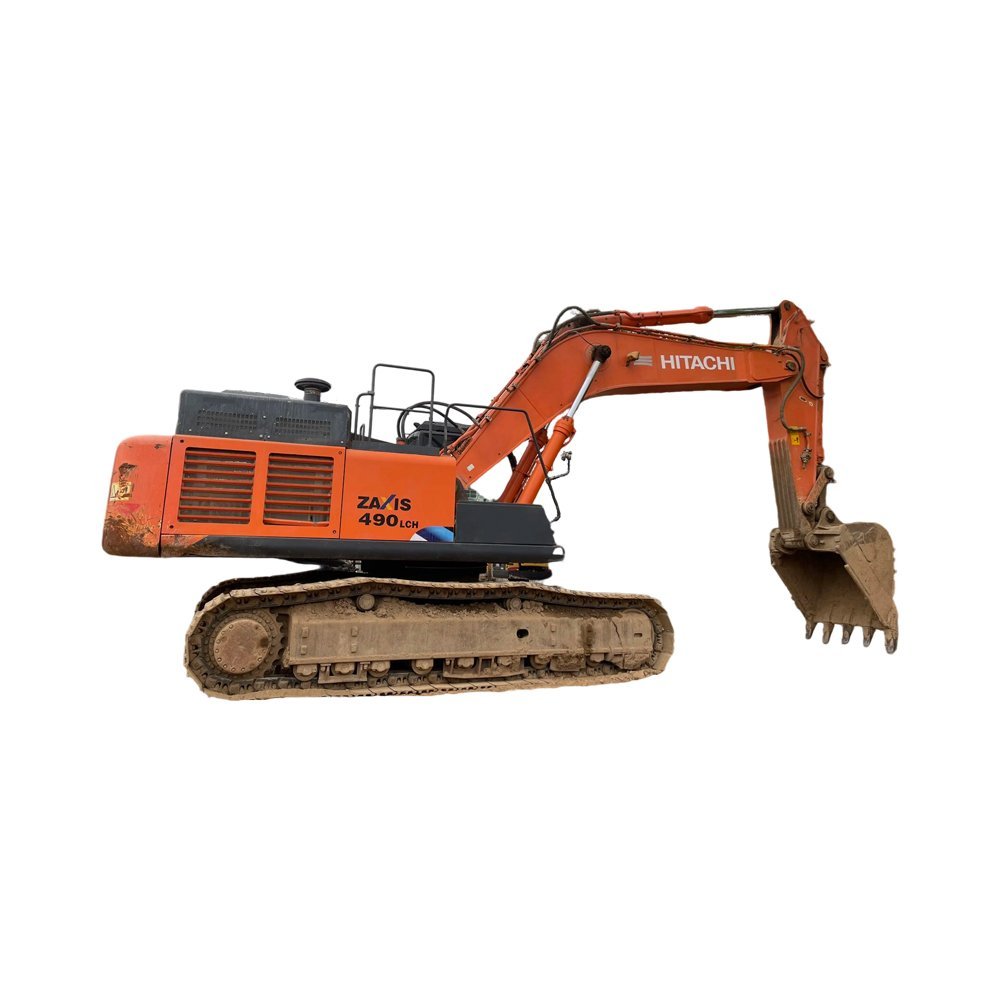

The Hitachi ZX490LCH-5G excavator has a number of structural design advantages. It uses thickened steel plates to create an integrated rocker arm, which enhances structural stability and deadweight, thereby improving digging force. The arm cylinder is removed from the rocker arm, which increases the digging depth and reduces maintenance costs. In addition, the hydraulic layout is optimized, the hydraulic flow is concentrated, and the advantages of dual pump confluence are fully utilized to improve work efficiency. After rigorous testing, the design also fully considers practical issues such as transportation to ensure a high-quality production process.
The Hitachi ZX490LCH-5G excavator is equipped with an Isuzu engine, which has strong and stable power output and can easily cope with complex working conditions. In addition, it also has the characteristics of fuel saving and high efficiency, while maintaining high operating efficiency, reducing fuel consumption and reducing operating costs.
The Hitachi ZX490LCH-5G excavator enjoys a high reputation in the large excavator market and occupies a considerable market share. Isuzu engines are known for their versatility, easy repair and low maintenance costs, and spare parts are in sufficient supply. In addition, second-hand engines depreciate slowly and have high residual value, making them a reliable investment.
Technical Parameter
Item
Parameter
Total Length
12040mm
Total Width
3820mm
Total Height (to Cab Top)
3320mm
Total Height (to Boom Top)
4120mm
Minimum Ground Clearance
535mm
Tail Swing Radius
3670mm
Maximum Digging Radius
12060mm
Maximum Digging Depth
7850mm
Maximum Vertical Digging Depth
7170mm
Maximum Digging Height
10980mm
Maximum Dumping Height
7580mm
Minimum Swing Radius
4840mm
Operating Weight
47.6t
Standard Bucket Capacity
2.1m3
Model
Isuzu GH-6UZ1XKSA-01
Type
4-stroke, water-cooled, direct-injection, turbocharged, intercooled
Rated Power
257kW (345HP)
Number of Cylinders
6
Piston Displacement
9.839L
Main Pump Type
2 variable axial piston pumps
Maximum Main Pump Flow
2*400L/min
System Rated Pressure
34.3MPa
Track Width
600mm
Track Gauge
2740mm
Travel Speed (High/Low)
5.5/3.9km/h
Swing Speed
9.5rpm
Gradeability
70% (35°)
Fuel Tank Capacity
725L
Hydraulic Tank Capacity
310L
Engine Oil Capacity
41L
Coolant Capacity
58L
