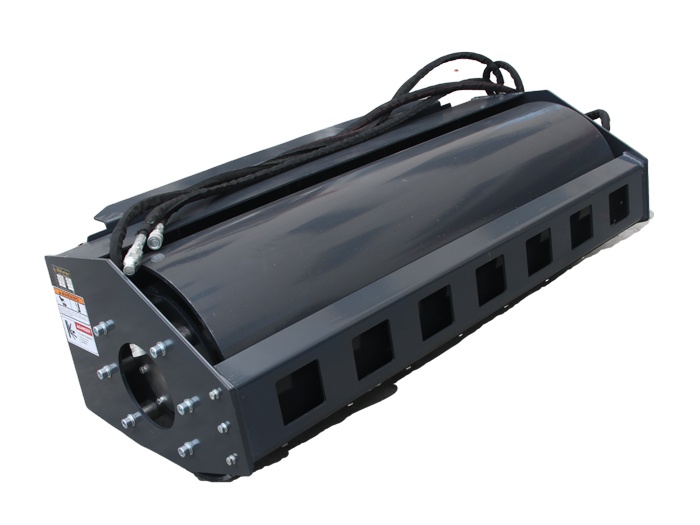

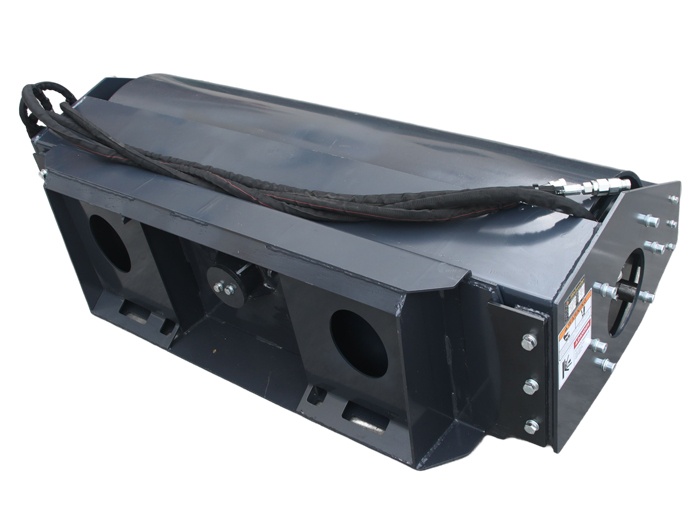

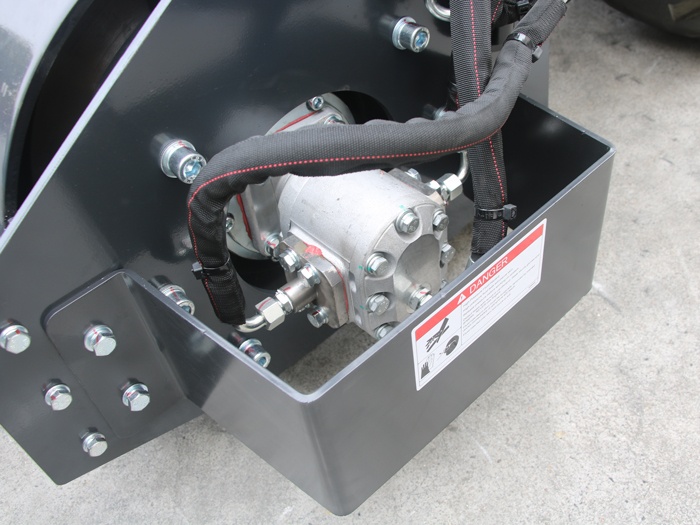

The Vibratory Roller Attachment can deliver up to 7200 lbs. of dynamic force when operating at 20 GPM. These commercial duty rollers have hydraulic drives that are protected and isolated to provide maximum performance and reliability. Their versatility makes them highly effective on a wide range of materials including sand, gravel, soils and asphalt.
Num
Item
Parameter
1
Width
66 in
2
Model
ZVR72 (72″)
3
Stimulation force
3.3 T
4
Maximum input flow
25 gpm
5
Output stable flow
16 gpm
6
Drum Type
Smooth
7
Drum Width
66 in
8
Discharge Height
30/69 in
9
Overall Width
72 in
10
Height (overall)
31 in
11
Length (overall)
39 in
12
Drum Diameter
24 in
13
Dynamic Force
7200 lbs
14
Vibrating Speed (vpm)
2600 vpm
15
Vibrating Weight:
1609 lbs
16
Drum Oscillation/Tilt
±15°
17
Max Hydraulic Flow
25 gpm
18
Max Hydraulic Flow:
14～122℉
19
Operating Weight
2150 Lbs.
