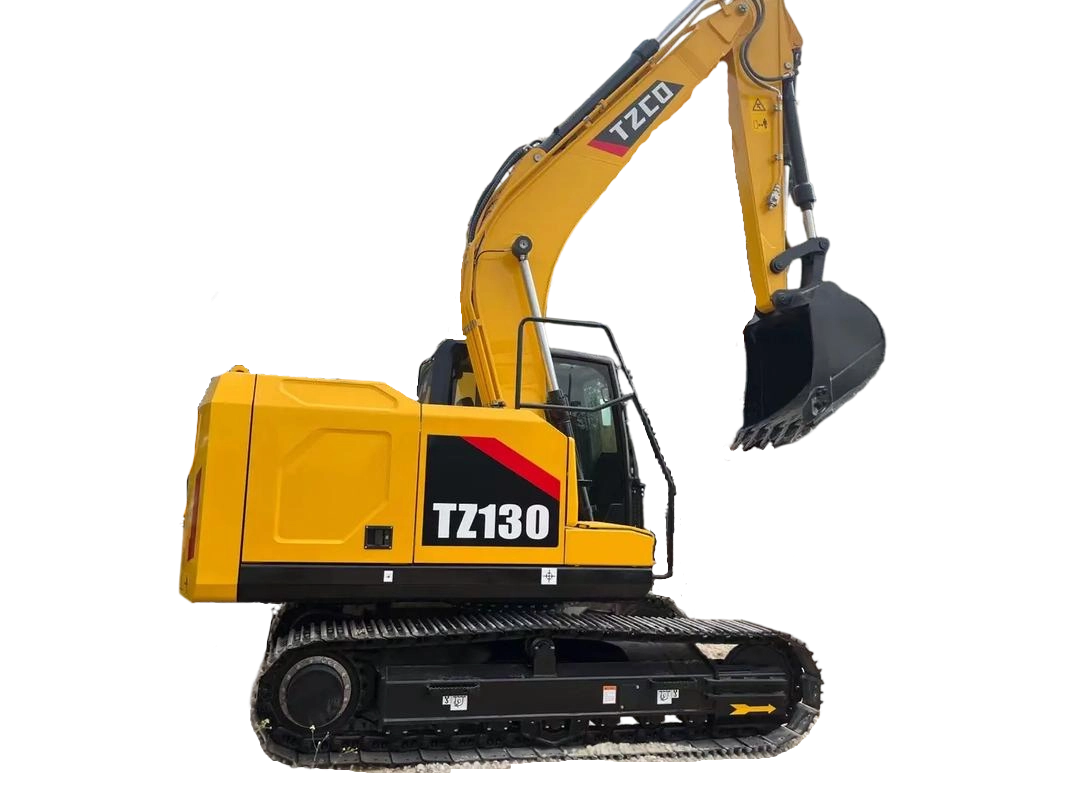

The TZ130 is a 13-ton medium-sized excavator complying with the National IV emission standard. It can adapt to various complex working environments and serve diverse global construction needs, while fully covering the core operation requirements of small and medium-sized earthwork projects and infrastructure construction. The powerful configuration of the power system lays a solid foundation for efficient operation. The model is equipped with an imported 4.5L large-displacement engine (rated power: 96kW/2200rpm). With more than 15% power redundancy and the characteristic of high torque at low speed, it ensures no stalling or speed drop during operation and features extremely rapid response. #text-3702776977 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0,0,0); } #text-3702776977 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-3702776977 { font-size: 0.9rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-3702776977 { font-size: 1.1rem; line-height: 2.1; } }

#text-box-1882136159 { width: 100%; } #text-box-1882136159 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1882136159 { width: 49%; } } @media (min-width:850px) { #text-box-1882136159 { width: 44%; } }

#image_1310647479 { width: 89%; } @media (min-width:550px) { #image_1310647479 { width: 43%; } } @media (min-width:850px) { #image_1310647479 { width: 19%; } }

#banner-724638824 { padding-top: 700px; } @media (min-width:550px) { #banner-724638824 { padding-top: 350px; } } @media (min-width:850px) { #banner-724638824 { padding-top: 500px; } }

#image_2079268723 { width: 89%; } @media (min-width:550px) { #image_2079268723 { width: 32%; } } @media (min-width:850px) { #image_2079268723 { width: 38%; } }

For complex environments, this model has excellent adaptability with no power reduction at an altitude of 3000 meters, and even makes a reliability commitment of 20,000 hours of trouble-free operation without major repairs. The hydraulic system adopts a large-displacement electronic control hydraulic pump and a large-diameter integrally cast main valve. Through the independent and dedicated intelligent algorithm of Taiyuan Heavy Industry (TZ), the in-depth matching between the engine and the hydraulic system is realized. The optimized spool opening shape and interaction logic make the composite actions more coordinated, reducing the single-action cycle time by 5% and increasing the operation efficiency by 8% compared with traditional models. Meanwhile, it is equipped with two working modes: P (heavy load) and E (economic). Combined with the automatic idle function, it reduces fuel consumption by 21% compared with a certain S brand, perfectly balancing efficiency and economy. #text-3806715791 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(255, 255, 255); } #text-3806715791 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-3806715791 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-3806715791 { font-size: 0.9rem; line-height: 2.05; text-align: left; } }

#text-box-1779634159 { width: 100%; } #text-box-1779634159 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1779634159 { width: 49%; } } @media (min-width:850px) { #text-box-1779634159 { width: 45%; } }

#banner-1953685106 { padding-top: 750px; } #banner-1953685106 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-1953685106 { padding-top: 400px; } } @media (min-width:850px) { #banner-1953685106 { padding-top: 500px; } }

#image_1477706412 { width: 89%; } @media (min-width:550px) { #image_1477706412 { width: 40%; } } @media (min-width:850px) { #image_1477706412 { width: 13%; } }

The dual upgrades of driving experience and safety protection redefine operational comfort. The TZ130 adopts an industry-leading spacious cab design, with a 27% larger space than similar models. It is equipped with an 8-inch integrated function LCD touch screen, which centrally displays common operations such as air conditioning, regeneration, and action priority. Combined with the one-key start function, it greatly simplifies the operation process. The cab adopts a positive pressure and high-sealing design, combined with optimized sound insulation materials and a new-generation shock absorber, to achieve a car-level quiet experience. Configurations such as a 10-air-vent all-round air conditioner and a cold-warm storage box further enhance operational comfort. In terms of safety protection, the entire machine’s structural parts are made of high-strength materials, and the key components of the working device use forged structures, extending the service life by more than 30%. The cab front protective net, optional roll-over protection device, and GPS multiple locking system build a comprehensive safety defense line. #text-2343450841 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(0, 0, 0); } #text-2343450841 > * { color: rgb(0, 0, 0); } @media (min-width:550px) { #text-2343450841 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-2343450841 { font-size: 1rem; line-height: 2.05; } }

#text-box-1245108943 { width: 100%; } #text-box-1245108943 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1245108943 { width: 51%; } } @media (min-width:850px) { #text-box-1245108943 { width: 44%; } }

#banner-1988178837 { padding-top: 840px; } #banner-1988178837 .overlay { background-color: rgba(248, 128, 12, 0.006); } @media (min-width:550px) { #banner-1988178837 { padding-top: 500px; } }

#image_203425176 { width: 89%; } @media (min-width:550px) { #image_203425176 { width: 32%; } } @media (min-width:850px) { #image_203425176 { width: 33%; } }

The optimized design for maintenance convenience significantly reduces users’ operating costs. The equipment adopts a flush layout of the engine hood and covers. Core maintenance components such as oil filters and diesel filters are arranged centrally, allowing operators to replace them while standing on the ground. The application of honeycomb direct-flow air filters extends the maintenance cycle to 1000 hours. Combined with the electrical box integrated outside the radiator, it significantly simplifies the fault diagnosis process. At the same time, it is equipped with a large double-filter air cleaner and pre-filter, combined with triple oil filter protection, which has strong adaptability to harsh dust and oil conditions. The parallel radiator design not only has higher heat dissipation efficiency but also supports quick disassembly and assembly. Combined with the integrated dust screen, it makes cleaning and maintenance more convenient. #text-625900475 { font-size: 1rem; line-height: 2; text-align: center; color: rgb(255, 255, 255); } #text-625900475 > * { color: rgb(255, 255, 255); } @media (min-width:550px) { #text-625900475 { font-size: 1rem; line-height: 2.3; text-align: left; } } @media (min-width:850px) { #text-625900475 { font-size: 1.1rem; line-height: 2.05; text-align: left; } }

#text-box-1063318346 { width: 100%; } #text-box-1063318346 .text-box-content { font-size: 100%; } @media (min-width:550px) { #text-box-1063318346 { width: 49%; } } @media (min-width:850px) { #text-box-1063318346 { width: 45%; } }

#banner-1413220790 { padding-top: 600px; } #banner-1413220790 .overlay { background-color: rgba(19, 19, 19, 0.791); } @media (min-width:550px) { #banner-1413220790 { padding-top: 450px; } } @media (min-width:850px) { #banner-1413220790 { padding-top: 500px; } }

Technical Parameter #text-1464143220 { font-size: 1.5rem; line-height: 2.45; text-align: center; color: rgb(0,0,0); } #text-1464143220 > * { color: rgb(0,0,0); } @media (min-width:550px) { #text-1464143220 { font-size: 1.7rem; line-height: 3; } }

Product Model
TZ130

Operating weight
13900kg

Bucket capacity
0.66m³

engine
Engine model
f/4.5

Indirect spray
Direct injection

4-stroke
4-stroke

Water cooling
Water cooling

Number of cylinders
4

Engine rated power
96/2200 kW/rpm

displacement
4.5 L

Oil capacity
Fuel tank capacity
270L

Hydraulic oil tank capacity
190L

Engine oil capacity
18L

hydraulic system
Main pump rated flow
2×118 L/min

Main safety valve pressure
34.3MPa

Travel system pressure
34.3MPa

Rotary system pressure
27MPa

Pilot system pressure
3.9MPa

Main performance
Travel speed (high/low)
5.5/3.5km/h

Rotation speed
12.2r/min

Climbing ability
35.

Ground pressure ratio
41.2kPa

Bucket digging force
102.8kN

Arm digging force
65kN

Maximum traction
120.75kN

Standard
Boom length
4600mm

Arm length
2900mm

Bucket capacity
0.66m³

Scope of work
Maximum digging height
8579mm

Maximum unloading height
6188mm

Maximum digging depth
5456mm

Maximum vertical digging depth
4888mm

Maximum digging radius
8283mm

Minimum turning radius
2501mm

Dimensions
Total Length
7721mm

Overall width
2505mm

Total height
2918mm

Turntable width
2490mm

Track length
3664mm

Chassis width
2490mm

Track width
500mm

Track wheelbase
2390mm

gauge
1990mm

Counterweight ground clearance
911.5mm

Minimum ground clearance
425.5mm

Minimum turning radius of tail
2255mm

Track height
950mm
