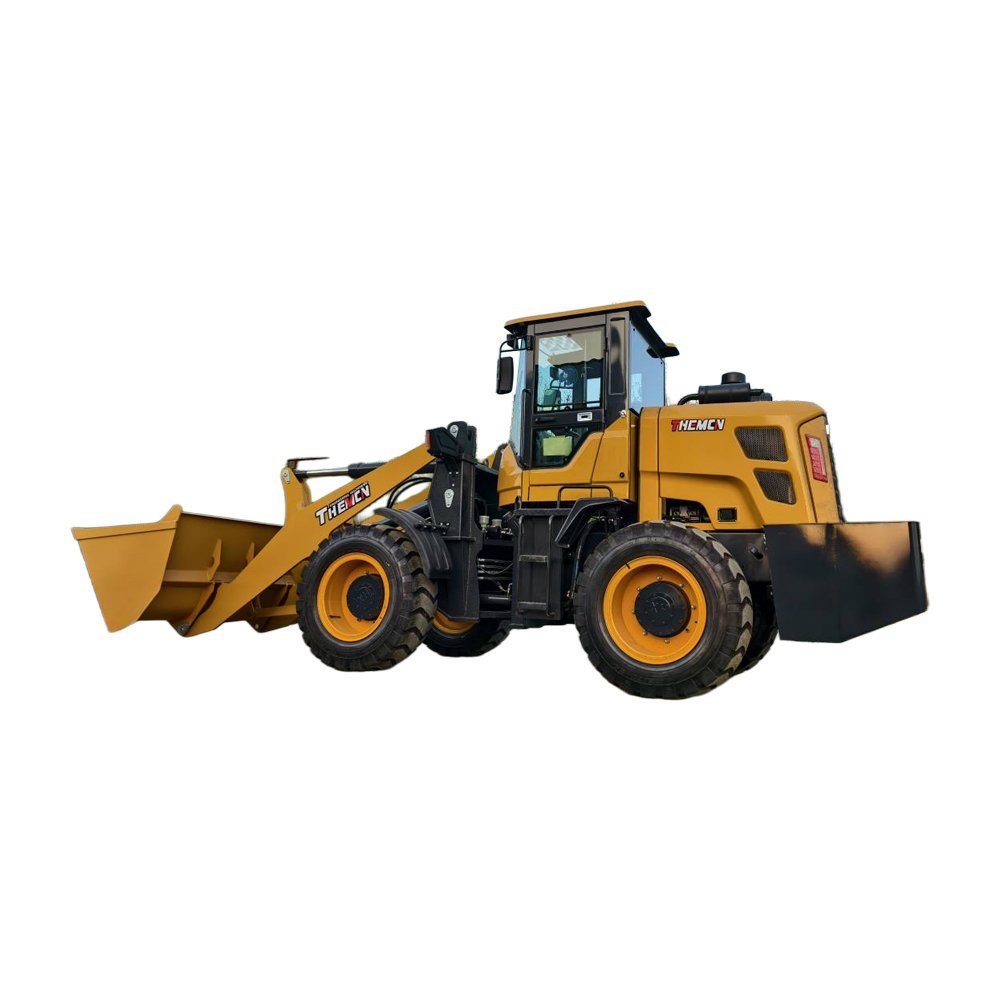

958H Wheel Loader is engineered to redefine productivity in demanding construction, mining, and industrial environments. Combining rugged durability with cutting-edge technology, this machine excels in heavy-load handling, offering unmatched versatility and operator comfort for the most challenging tasks.
Unmatched Power: Equipped with a 4102 turbocharged engine (optional 4105/4108/6105 supercharged upgrades) for exceptional torque and efficiency, tailored to extreme workloads.
Robust Build Quality: Features 3cm-thick upper arms, 50cm-wide curved arms, and a 2.2m reinforced bucket for maximum material-handling capacity, paired with a laser-cut integrated underframe (8mm thickness, 36cm height) for structural integrity.
Advanced Articulation: A 45-joint transverse plate bearing system ensures superior stability and maneuverability on uneven terrain, while the Golden Steel Air Brake Bridge delivers reliable stopping power.
Operator-Centric Design: A deluxe cab with aviation-grade shock-absorbing seats, armrests, and an LCD instrument panel prioritizes comfort and control during long shifts.
High Efficiency: Boasts a 3.8m unloading height (optional 3.5m) and a 0.9m unload distance for rapid cycle times, supported by 16/70-20 heavy-duty tires for traction in rugged conditions.
Customizable Configurations: Choose between a 280 integrated gearbox or optional split 300 gearbox, and upgrade to a 60/80L oil tank or 4mm thickened hood for enhanced durability.
Optimized Weight Distribution: With a >5,700kg vehicle weight (including five-hole traction) and 1.8-ton load capacity, it balances power and agility for diverse applications.
Spacious Dimensions: A 6.57×2.0×2.88m footprint and 4.75m wheelbase ensure stability and reach, ideal for large-scale projects.
Smart Upgrades: Features an expanded fuel tank for extended operation and 20-2-2 high-precision allocator for seamless hydraulic control.
Technical Parameter
Model
958HG heavy body top configuration
Center distance
950
Unloading distance
0.9 m
Engine
Weifang 4102 supercharger
Big Arms
3 cm
Bend Arm
50CM (front sampan 1.2 cm)
Brake Bridge
Medium and large wheel side steel bridge
Articulated
Transverse plate joint bearing 45 joints
Gearbox
265 split 280 standard
Tire
16/70-20 tire
Hopper
2.2m heavy bucket
Cab
Deluxe cab
Hood
Thickened hood 4mm
Allocator
20-2-2
Hydraulic rod
2063/25 pump
Fender
Iron mudguard
Cylinder
60/80 cylinder
Air filter
Oil filter Air filter/iron,
Instrument panel
Timer instrument panel
Underframe
Underframe 8mm and high 36cm
Counterweight thickness
Large counterweight 6mm surface 50CM
Oil pipe
Segmented S-bend
Torque converter
External refueling port
Vehicle size
6.57×2.0×2.88 m
Vehicle length
Front tire to rear weight 4.75 meters
Empty counterweight
＞4310kg
After filling
＞5700kg
Load capacity
2.5-2.8 tons
Other configurations
handbrake, five-hole traction, small cloth seat
