🔧 Product Description
The Upgraded Plasma Cutter adopts advanced IGBT Inverter Technology, offering stable performance, high efficiency, and reliable cutting results. Designed with a digital display for precise current control, this lightweight and portable cutter is perfect for both industrial and home use. With strong cutting capacity, simple operation, and a 60% heavy-duty cycle, it delivers consistent performance in demanding environments.
🌟 Key Features
Powerful Cutting Ability – Switch effortlessly between 110V/220V for home or workshop use. Achieve up to 1/2″ clean cuts on steel, aluminum, and copper with advanced IGBT inverter technology. Perfect for both DIY projects and heavy-duty tasks. Recommended max cutting thickness: 12mm @ 35A 110V, 50PSI. (Requires compressed air, compressor sold separately).

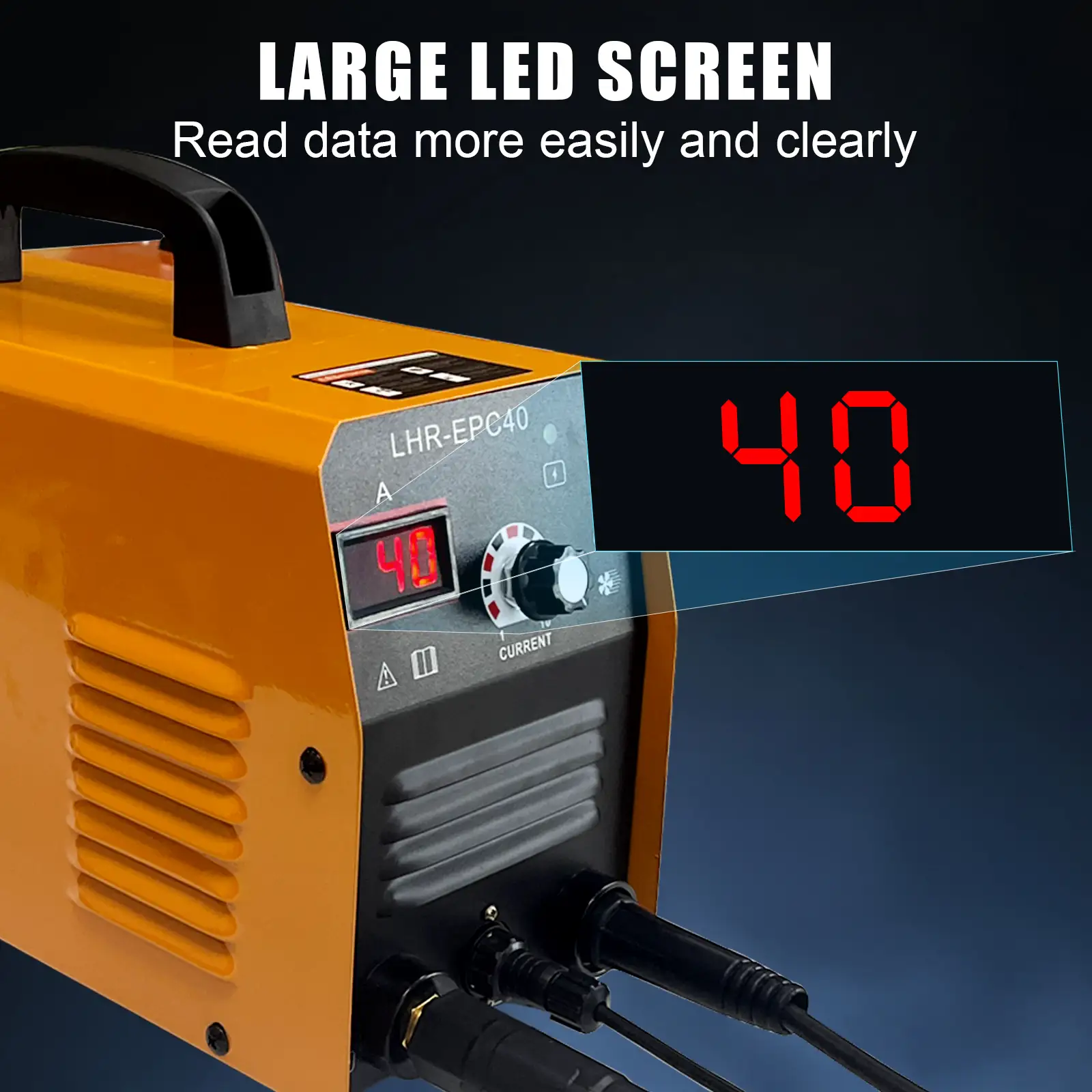

Upgraded LED Display – Newly upgraded digital screen clearly shows voltage and current in real time, making adjustments easier without removing your safety helmet. Error codes are displayed when issues occur, helping you quickly diagnose problems.

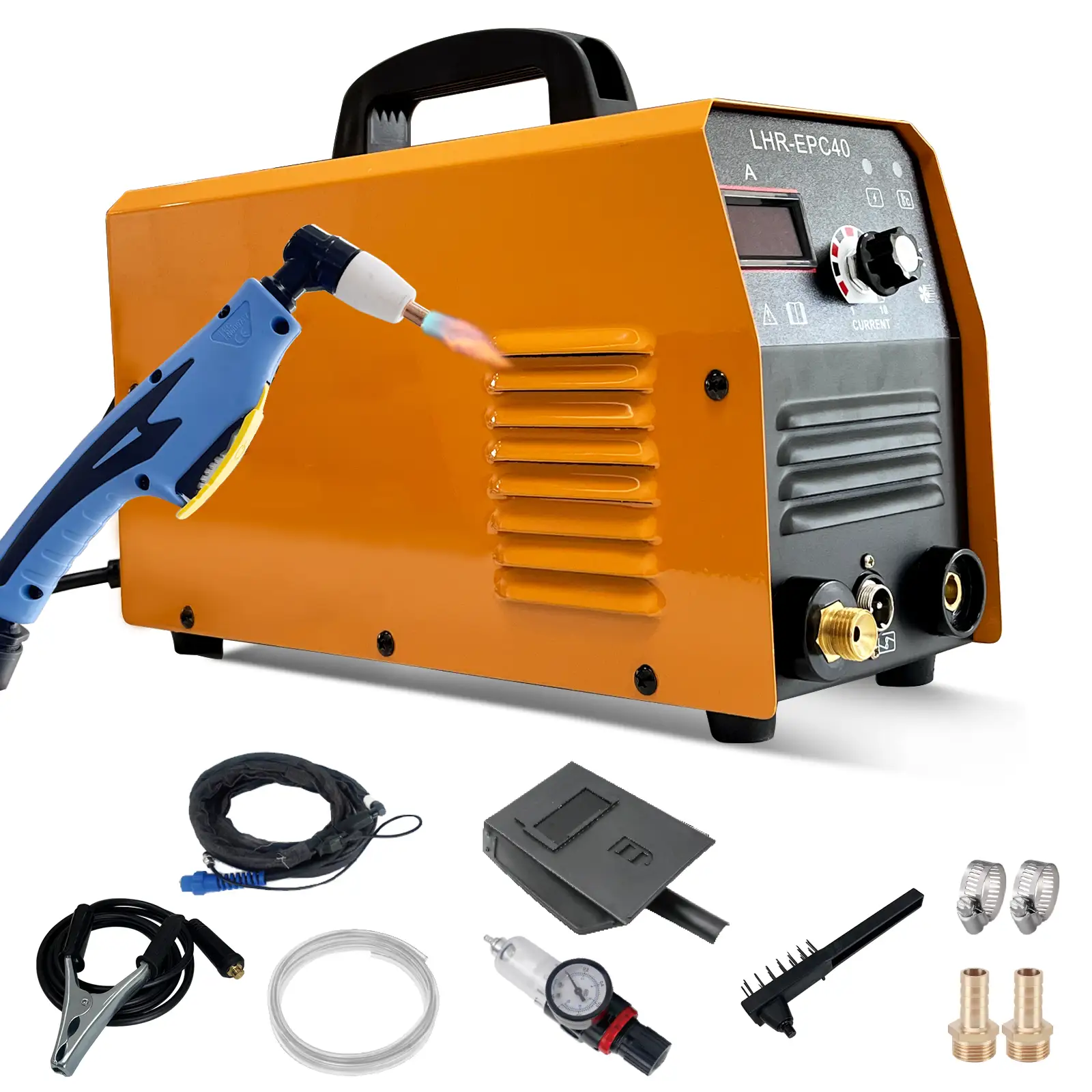

Fast 30-Second Setup – Plug-and-play design with a built-in air regulator, no tools required. Compatible with standard air compressors (5.3 CFM). Optimal air pressure: 0.4–0.6 Mpa, recommended flow rate: 150L/min (5.3 CFM, 57.5 PSI). Includes PT31 torch for precision cutting. NOTE: Do not switch voltages until the display turns off and the fan stops.
Ultra-Portable Design – Weighing only 15.7 lbs, this plasma cutter is lightweight and easy to carry with the included shoulder strap. Compact size fits into tight spaces, perfect for job sites, garages, and DIY workshops. Current output: 20–35A at 110V, 20–40A at 220V.
Safe & Durable – This plasma cutter is TÜV and ANSI certified, ensuring safety and reliability. The built-in post-time function controls torch cooling to extend consumable life. Rigorously tested before leaving the factory. Dedicated support team available to assist with any questions(Official warranty）.
📊 Technical Specifications
Rated Input Voltage: 110V / 220V (Dual Voltage)
Frequency: 50/60Hz
Phase: Single Phase
Input Capacity: 4.8KVA
Max No-load Voltage: 00V DC (check actual model rating)
Current Range: 10–40A
Cutting Thickness: 6–12mm
Rated Duty Cycle: 30% (60% heavy-duty cycle under optimized conditions)
Insulation Grade: H
Arc Starting Method: HF Arc Starting
