MX12R 1-Ton Mini Excavator

$4,888.00 USD

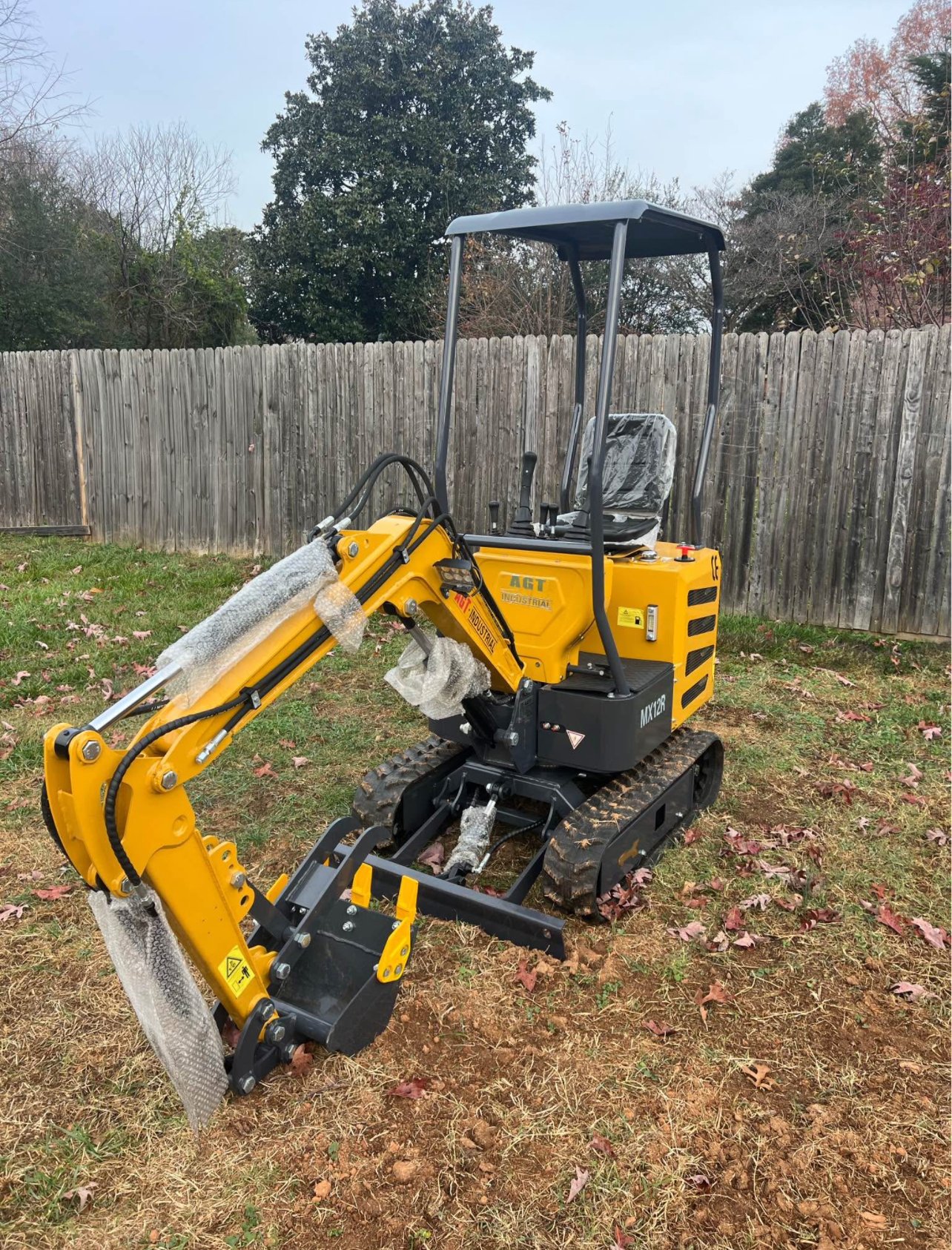

The AGT MX12R 1-ton mini excavator is a compact digger powered by a 13.5 HP gas engine, featuring a 14-inch bucket and 7-inch rubber tracks. Key specifications include a maximum digging depth of approximately 69.45 inches, a working weight around 1918-2215 lbs, and plumbing for auxiliary hydraulics for additional attachments like a thumb or auger.

Category: 1-2 Ton Mini Excavators

Description
Reviews (0)

Mini Excavator, 1-ton
Engine and performance

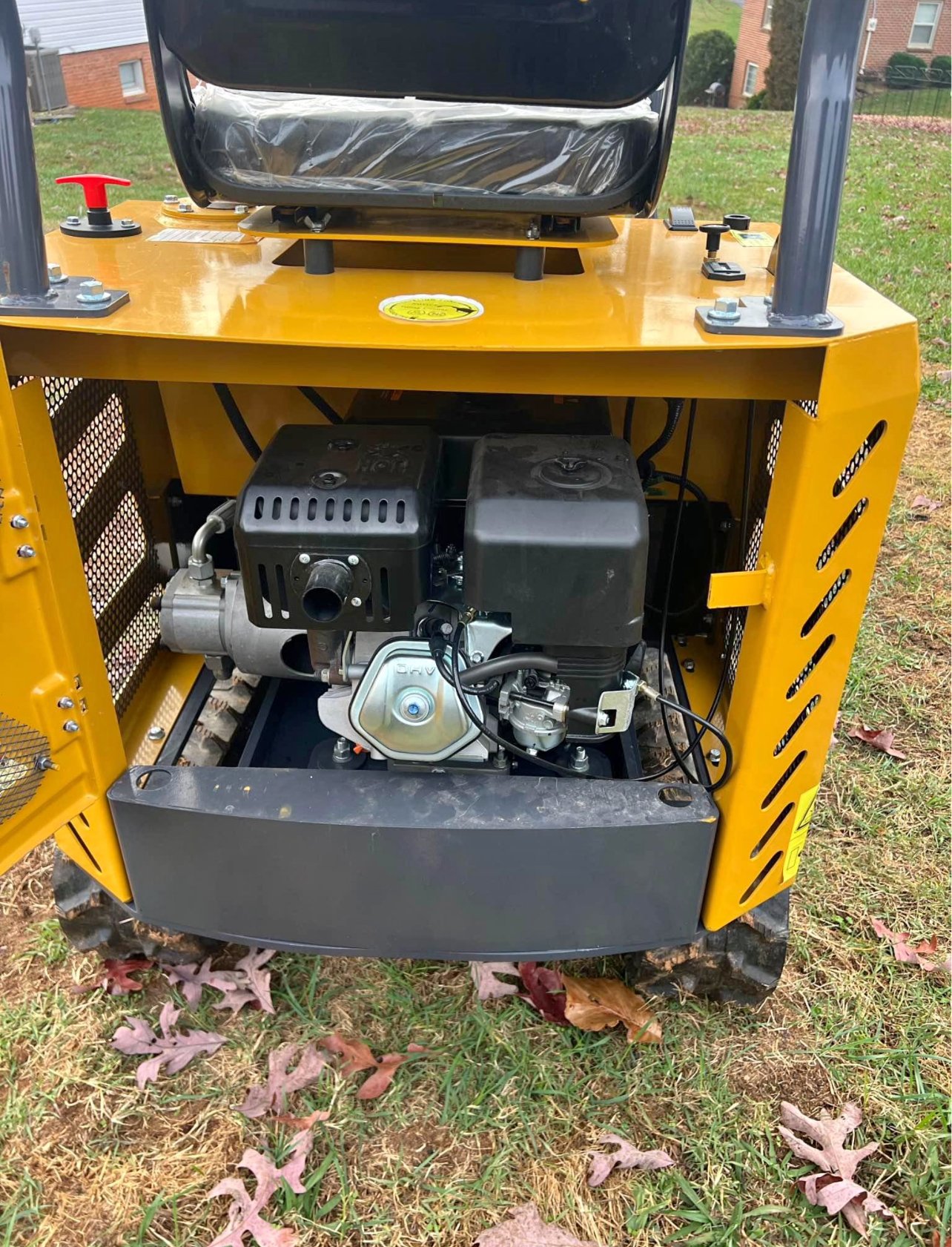

Engine: 13.5 HP gasoline engine
Horsepower: 13.3 hp (ps)
Max Power: 9.8 kW
Rated Set Pressure: 16 Mpa
Max. Flow Rate: 21.6 L/min

Dimensions and weight

Working Weight: ~1918 lbs
Operating Weight: ~2215-2300 lbs
Bucket Width: 14 inches
Track Width: 7 inches
Max Digging Depth: 69.45 inches (approx.

1,7641 comma 764
1,764 mm)

Max Digging Height: 105.12 inches (approx.

2,6702 comma 670
2,670 mm)

Max Unloading Height: 74.8 inches (approx.

1,9001 comma 900
1,900 mm)

Max Digging Radius: 121.26 inches (approx.

3,0803 comma 080
3,080 mm)

Features

Tracks: Rubber tracks
Hydraulics: Plumbed for auxiliary hydraulics

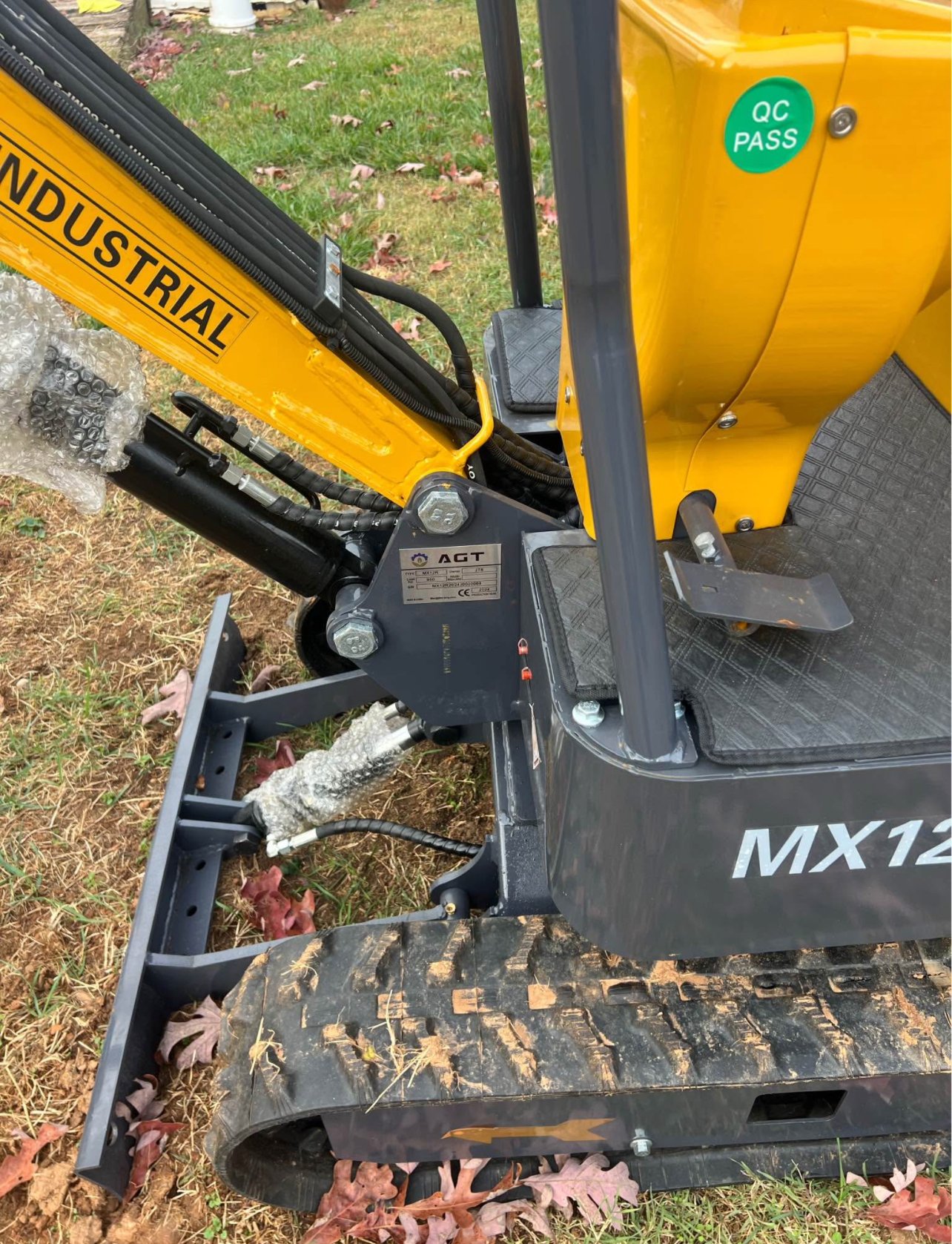

Attachment: Includes a fixed thumb and backfill blade
Drive System: Hydraulic drive
Fuel Tank: 1.74 gallons
Hydraulic Oil Tank: 4.7 gallons

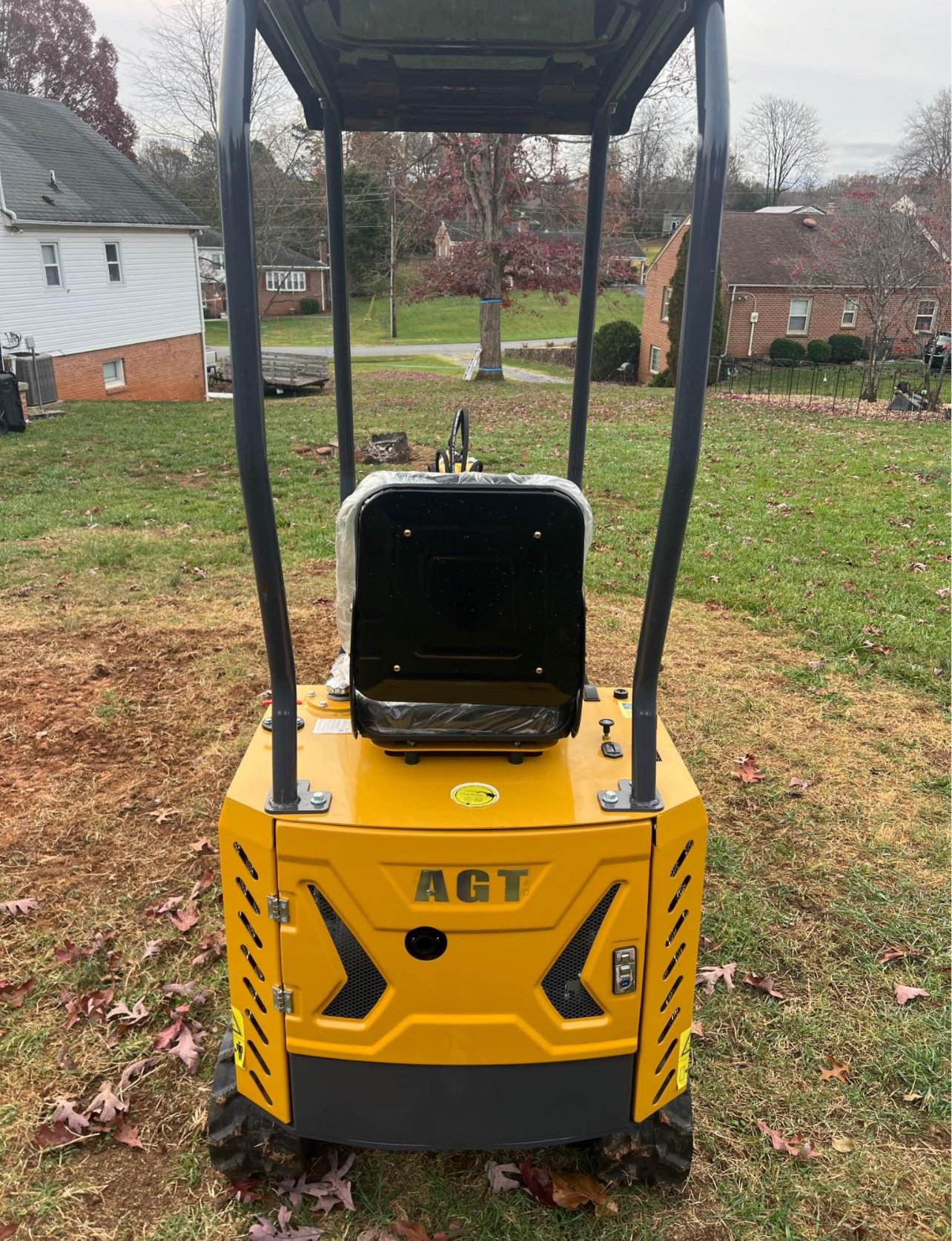

Safety: Features a Rollover Protective Structure (ROPS)
