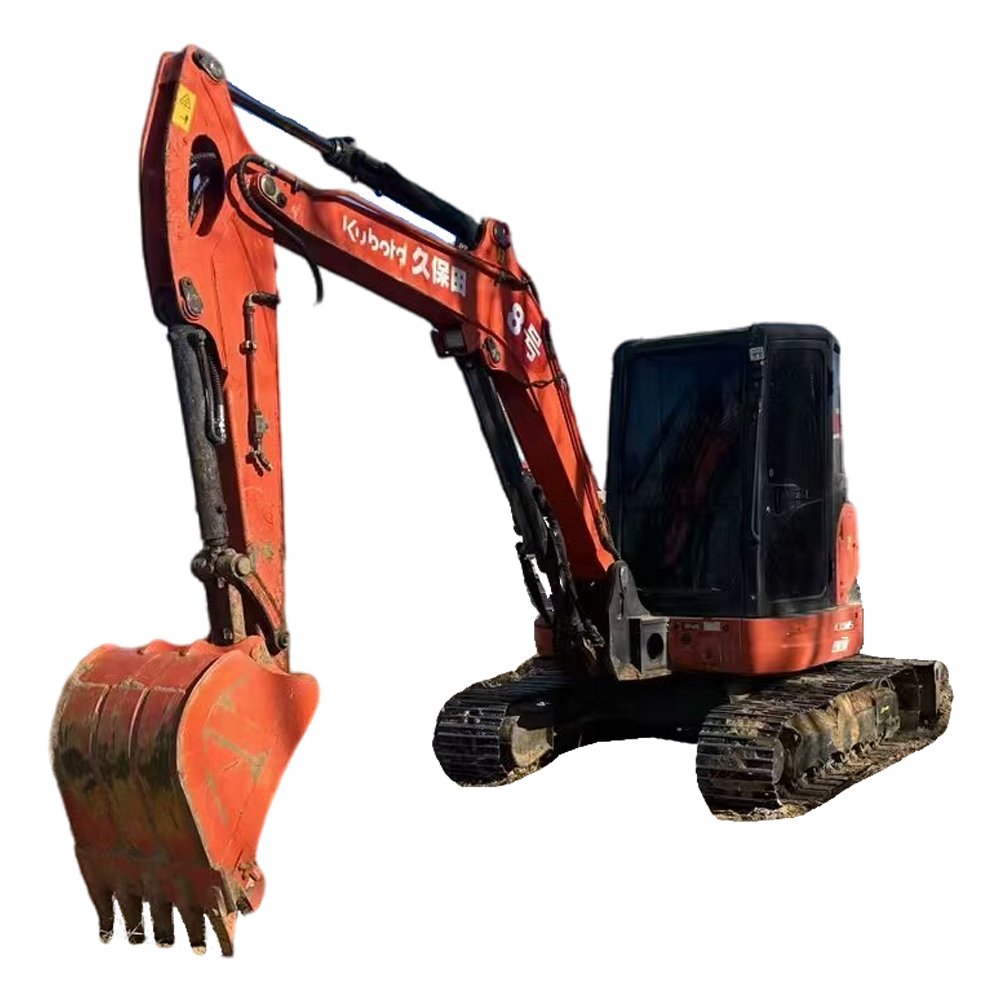

Kubota 165

Kubota 165-5 is a 5.5-ton tailless small excavator. The ultra-small slewing design allows the tail width of Kubota 165-5 to only exceed the track by 290MM when the body of the excavator rotates to either side. It is an ultra-small slewing design. Compared with standard models, the tail protrudes less, and high-efficiency operation can be achieved in narrow places, and the operability and stability are the same as those of standard models. At the same time, it can achieve ultra-high adaptability to working conditions, operational flexibility and high safety close to tailless slewing models.













Kubota 165-5 has good stability, and the external manifestation of stability is its strong lifting capacity. The maximum front lifting weight is 1040 kg, and the front vertical lifting capacity is particularly strong, which will be very useful in pipeline laying and municipal engineering.
All operations of Kubota 165-5 are hydraulically piloted, and all operations such as walking, swinging, bulldozer, and spare pipelines are hydraulically piloted, ensuring that all movements are smooth and free, while also improving operability.



Kubota 165-5 uses a large bucket (bucket capacity 0.24m³) with a bucket digging force of up to 40.1KN. Such a large bucket digging force is fully suitable for various harsh working conditions. The bucket cuts in faster during the digging process and has higher working efficiency. The unique automatic idling function automatically saves fuel. It is the first in the field of small excavators to use advanced equipment such as automatic idling function. When the joystick stops for 4 seconds, the engine automatically switches to idle operation. When the joystick is operated again, the engine immediately returns to the original speed. Whether the operator is attentive or not, the equipment automatically helps you save fuel.





Technical Parameter


Category
Parameters

Product name
Kubota 165

Engine model
Kubota V2607-DI

Machine weight
5,540 kg

Bucket capacity
0.24 m³

Rated power
48.3 kW / 2,200 rpm

Bucket digging force
40.1 kN

Length × width × height
5,520 mm × 1,960 mm × 2,550 mm

Maximum digging depth
3,920 mm

Maximum digging height
5,860 mm

Maximum unloading height
4,125 mm

Travel speed
2.7 / 4.6 km/h (two-speed gear shift)

Gradability
30°

Fuel tank capacity
75 L
