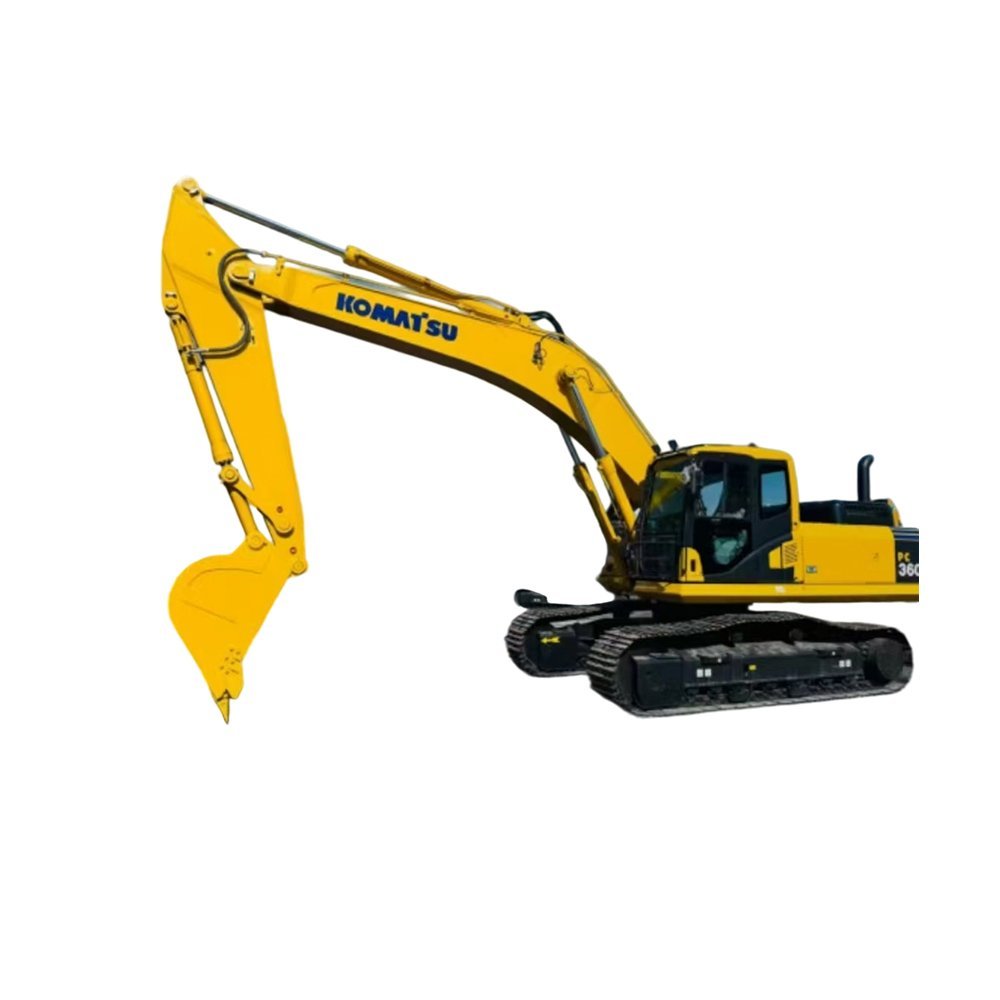

Komatsu 360

Powerful power, energy saving and high efficiency
The Komatsu 360 is equipped with the Komatsu SAA6D114E engine, which can easily cope with various complex and high-intensity operating conditions, whether it is the excavation of hard rocks in mines or the handling of large amounts of earth in large-scale infrastructure construction. The engine uses advanced fuel injection technology and is equipped with an intelligent control system to ensure full combustion of fuel and improve fuel utilization. At the same time, the Komatsu 360 has a fast mode that prioritizes workload and an economic mode that prioritizes fuel saving. In the economic mode, when the equipment is in partial load conditions, the engine can automatically adjust the output power to reduce unnecessary fuel consumption, achieve a good balance between power and energy saving, and reduce operating costs.



Excellent product features to ensure stable operation

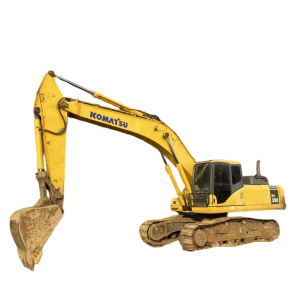

The high-strength structural parts treated with special processes and the large counterweight design make the Komatsu 300-7 sturdy and durable, ensuring safe operation; the spacious cab space, large-size operation display screen, and large-capacity automatic air conditioning provide a good working environment for operators; the radiator design is easy to clean, and the oil-water separator and additional fuel filter are standardly equipped to protect the engine and fuel system and reduce the probability of failure. It is also equipped with an advanced fault diagnosis system for convenient maintenance.



Wide application areas, helping various projects
Komatsu 360 performs well in large-scale infrastructure construction, large construction sites, and various mining operations.





Technical Parameter

Category
Parameters

Product name
komatsu 360

Engine model
Komatsu SAA6D114E

Working weight
33,000 kg

Bucket capacity
1.6 m³

Rated power
180 kW/1,900 rpm

Displacement
8.27 L

Bucket digging force
227 kN

Arm digging force
171 kN

Total length
11,140 mm

Total width
3,190 mm

Total height
3,280 mm (including cab top structure)

Total height of cab
3,130 mm

Total track length
4,625 mm

Track ground length
3,700 mm

Track shoe width
600 mm

Minimum ground clearance
500 mm

Rear end turning radius
3,450 mm

Travel speed
High speed: 5.5 km/h Medium speed: 4.5 km/h Low speed: 3.2 km/h

Maximum digging depth
7,380 mm

Maximum digging height
10,210 mm

Maximum unloading height
7,110 mm

Maximum digging radius
11,100 mm

Maximum flow of main pump
535 L/min

Travel hydraulic circuit pressure
37.3 MPa

Slewing hydraulic circuit pressure
27.9 MPa

Fuel tank
605 L

Hydraulic oil tank
188 L

Engine oil replacement volume
35 L
