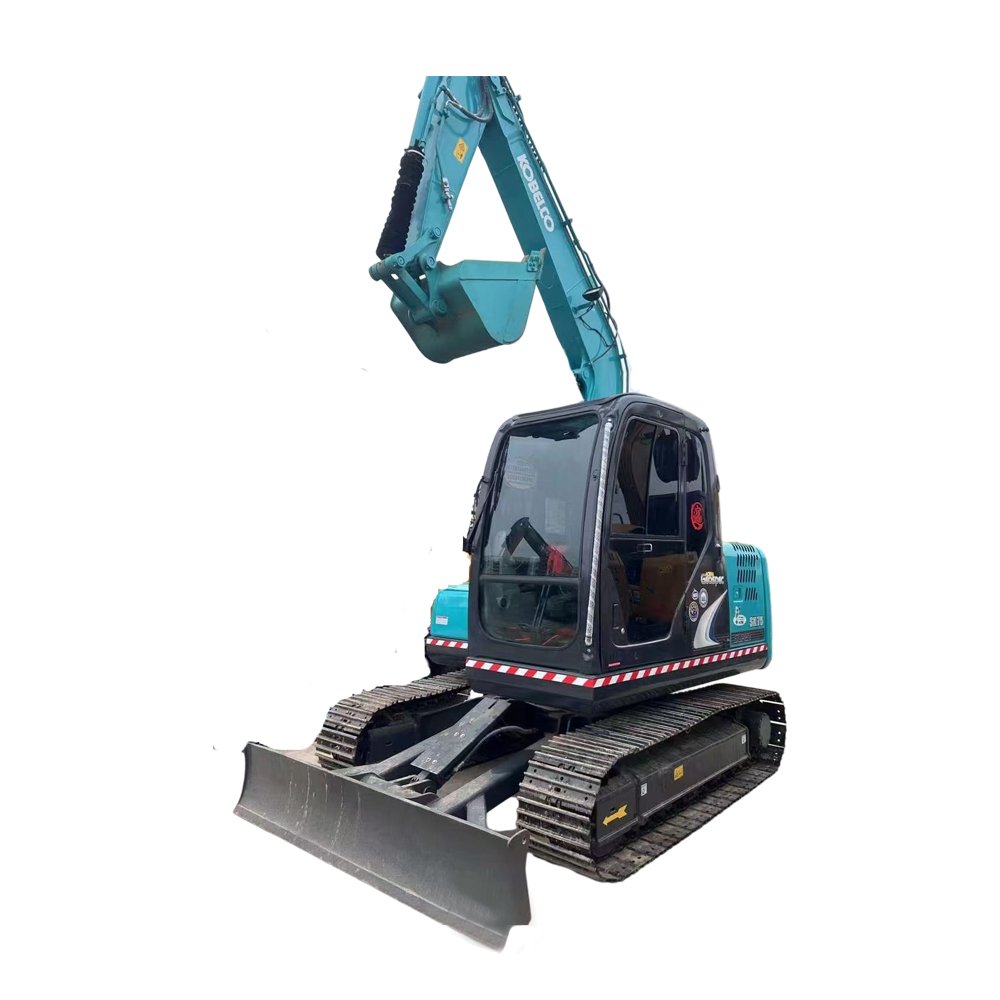

Kobelco 75

The Kobelco SK75-8 excavator, with a bucket capacity of 0.4 cubic meters, has garnered widespread acclaim among users. Many highlight its superior configuration compared to similar-class machines, flexible and agile booms/arms, faster operating speeds, and remarkable fuel efficiency. Its larger bucket size also makes it a favorite among operators.
1. Spacious and Luxurious Cabin
Despite being a compact excavator, the SK75-8 features a cabin comparable in size to larger models. It offers a 360° panoramic view, enhanced safety features, ample legroom, and a shock-absorbing system for superior comfort and safety.



Fuel Efficiency + Eco-Friendly Design
Powered by the Isuzu 4LE2XCUA engine(41kW/2,200rpm, <2.2L displacement), the SK75-8 balances power and economy. Its cooled EGR systemreduces emissions while boosting engine performance, ensuring quicker and smoother operations.
Advanced Hydraulic System for Minimal Energy Loss
Equipped with a next-gen hydraulic system, the SK75-8 utilizes high-efficiency pumps and low-pressure-loss circuits to minimize energy waste. The large-capacity fuel tank further extends uninterrupted working hours.





Larger Bucket Capacity Than Competitors
Weighing 6.58 tons, the SK75-8 boasts a bucket capacity of 0.4m³, alongside a max arm digging force of 39.4kNand max bucket digging force of 52.7kN. Its bucket size holds a significant advantage over peers in the same class.
Streamlined Maintenance with New Engine Cover Design
The redesigned engine compartment positions the battery and radiator on the left, main control valve on the right, and engine at the rear center, simplifying access for maintenance and inspections.

Conclusion
The Kobelco SK75-8 stands out as a cost-effective, high-performance compact excavator in its class, delivering efficiency, durability, and operator comfort—a reliable assistant for demanding projects.





Technical Parameter

Category
Parameters

Product name
Kobelco 75

Engine model
ISUZU 4LE2XCUA

Machine operating weight
6,850 kg

Bucket capacity
0.4 m³ (backhoe)

Rated power
41 kW/2,200 rpm

Displacement
2.179 L

Bucket digging force
52.7 kN

Arm digging force
39.4 kN

Total length
6,200 mm

Total width
2,320 mm

Total height
2,650 mm

Cab height
2,730 mm

Total track length
2,830 mm

Track shoe width
450 mm

Minimum ground clearance
375 mm

Travel speed
5.3 km/h（high） 2.8 km/h（low）

Maximum digging depth
4,170 mm

Maximum digging height
7,400 mm

Maximum unloading height
5,330 mm

Fuel tank
140 L
