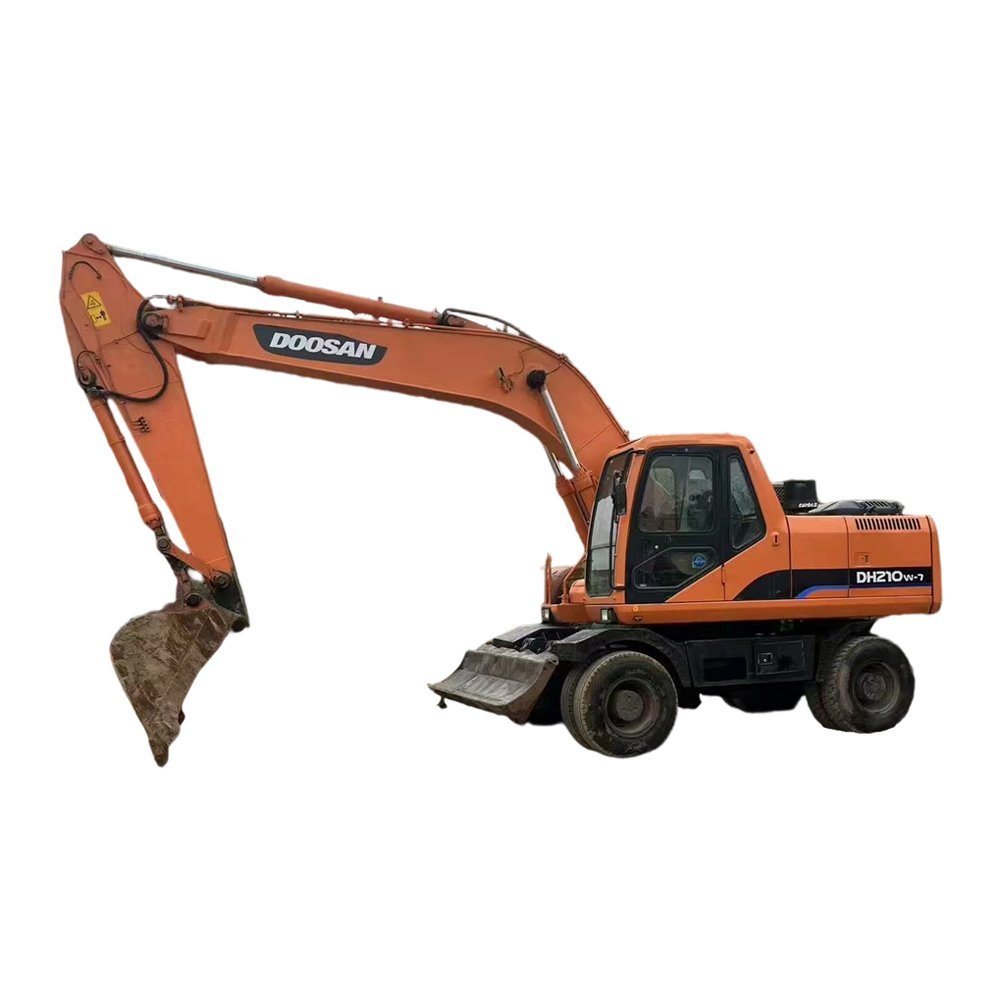

The Doosan DH210W is equipped with an environmentally friendly, super-powerful water-cooled Doosan engine. The engine is equipped with a new cooling fan and a large muffler to help reduce emissions and noise while providing strong digging force and excellent driving performance. The machine can move quickly on the construction site, has high travel speeds, excellent acceleration performance, and strong travel and climbing capabilities, making it ideal for working on rough and uneven surfaces. In addition, the DH210W is equipped with a large-flow hydraulic pump and a large-displacement gear pump, which significantly improves the operability of the pilot line, thereby achieving more efficient work.
The swing motor of the Doosan DH210W is equipped with a built-in anti-reverse valve as standard. This function prevents the upper body from swinging when braking, ensuring more efficient and controllable work. The control valve has been redesigned to suit the specific characteristics of the equipment, significantly improving its working performance. The use of piston cylinders helps to minimize vibrations that may occur due to uneven ground during operation and driving. In addition, the travel motor can be adjusted according to different road conditions, and the output torque is greatly improved. This combination of features ensures smooth and efficient operation in various working environments.
The Doosan DH210W is equipped with a variety of convenient internal and external functions to ensure that it always operates at its best. The exhaust pipe is made of stainless steel, which is durable and prevents rust. In addition, it is equipped with a large-capacity 350-liter fuel tank for long-term continuous operation. To ensure the safety of the engine during maintenance, a turbocharger heat shield is also installed. These sturdy design elements reduce the need for frequent maintenance and significantly improve the reliability of the machine.
The rear bracket of the Doosan DH210W boom adopts an integrated casting process, which not only effectively prevents breakage but also ensures the best service life. The key components of the boom are reinforced based on stress analysis, and the parts around the sleeve are all castings, which enhances strength and prolongs service life. With a large up and down range of motion and a high ground clearance, the bulldozer is ideal for regular driving, climbing, and working in challenging terrain such as dangerous areas or wetlands. This design ensures that the machine can easily and reliably cope with various harsh working conditions.
The Doosan DH210W is equipped with a multi-function LCD instrument panel and various buttons, which are arranged scientifically and centrally. This layout can display the working status from multiple angles and create a comfortable and convenient driving environment. In addition, the PC Monitoring System (SMS) supports the use of a laptop to view and diagnose vehicle status, query history and store data. The system monitors vehicle status in real time, including engine speed and main pump pressure, and can perform real-time fault confirmation and history analysis. It can also determine the operating mode based on the operating history, thereby improving the efficiency of equipment management and maintenance.
Technical Parameter
Model No.:
DH210W
Operating weight:
19800kg
Bucket capacity:
0.5-1.18m³
Boom length:
5700mm
Arm length:
2900mm/2400mm
Forward speed:
9-35Km/h
Minimum turning radius:
3.6m
Slewing speed:
12.2rpm
Climbing ability:
59.6% (30.8°)
Bucket digging force:
118kN
Arm digging force:
91kN/107kN (with different Arm)
Engine model:
Doosan DB58TIS
Rated power:
115kW/2200rpm
Total displacement:
5.785L
Number of cylinders:
6
Cylinder diameter × stroke:
102×118mm
Cooling method:
Water-cooled (air-to-air)
Main pump type:
Variable axial piston pump
Main pump maximum flow:
2×239L/min
Working hydraulic oil circuit:
Standard 30.8MPa / boost 33.6MPa
Travel hydraulic circuit:
33.6MPa
Slewing hydraulic circuit:
27MPa
Pilot pump flow:
22.1L/min
Fuel tank:
350L
Hydraulic oil tank:
118L
Total transport length:
9535mm
Total transport width:
2470mm
Total transport height:
3790mm
Total height of cab:
3111mm
Wheelbase:
2850mm
Tread:
1874mm
Single tire width:
596mm
Total tire outer width:
2470mm
Counterweight ground clearance:
1254mm
Minimum ground clearance:
340mm
Rear end turning radius:
2750mm
Maximum digging radius:
9895mm/9572mm
Maximum digging radius on the ground:
9694mm/9363mm
Maximum digging depth:
6560mm/6058mm
Maximum vertical digging depth:
5868mm/5389mm
Maximum digging height:
9867mm/9857mm
Maximum unloading height:
6825mm/6604mm
