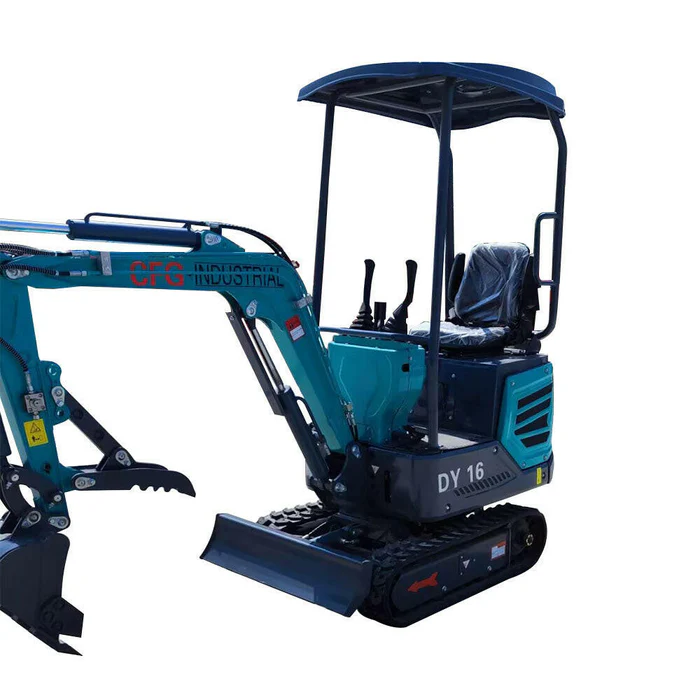

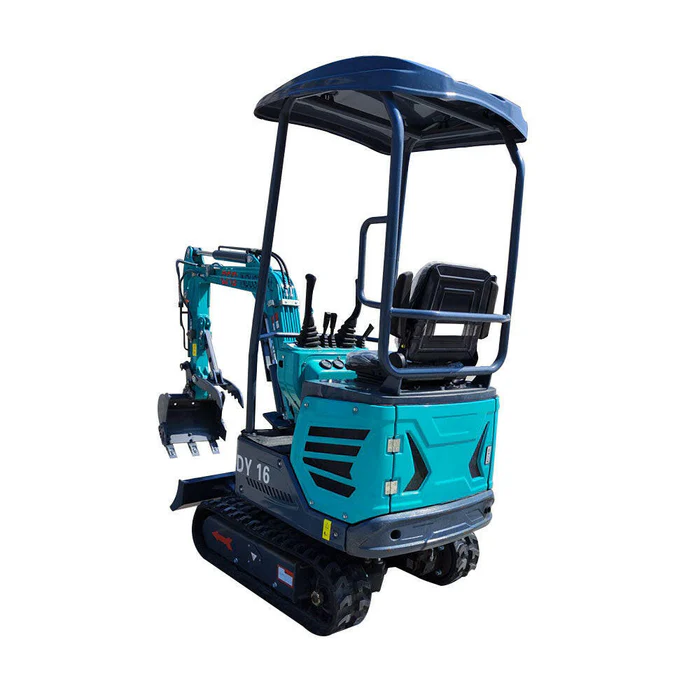

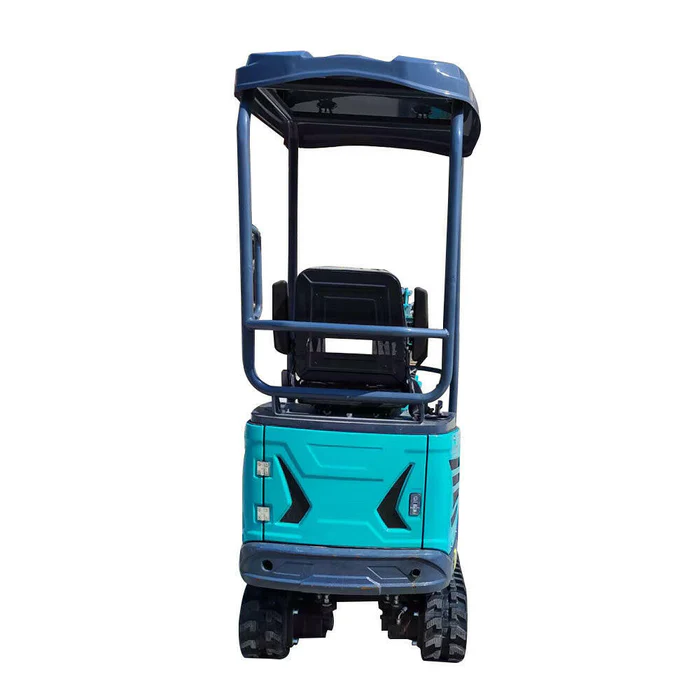

1 Ton, Kubota Engine Mini Excavator | CFG-DY16

The CFG-DY16 is a compact and versatile mini excavator designed for various construction and landscaping tasks.

Technical Data:

Mini-excavator weight: 1050 kg
Bucket capacity: 0.022 m³
Working Device: Backhoe

Engine

Model: D722-E4B-2FM-1
Delivery capacity: 1.93
Rated output power/speed: 10.2 kW / 2500 r/min
Maximum torque: 42.9 N·m / 2000 r/min

Speed & Performance

Maximum travel speed: 2 km/h
Slewing speed: 8 rpm
Maximum climbing ability: 30°

Size & Dimensions

Total Length (Transportation): 2873 mm
Total Width: 930 mm
Total Height (with/without ceiling): 2257 mm / 2025 mm

Bulldozer

Blade Width: 937 mm
Blade Height: 210 mm
Maximum bulldozing height: 170 mm
Maximum bulldozing depth: 240 mm

Caterpillar Band Part

Ground pressure: 0.3 kgf/cm²
Material: Rubber
Center Distance: 746 mm
Standard Board Width: 180 mm
Total Length of Caterpillar Band: 1200 mm
Tension Type: Grease cylinder

Hydraulic System

Pump Type: Gear pump
Working Pressure: 16 MPa
Flow Rate: 17.6 L/min

Fluid Capacities

Hydraulic Tank Capacity: 15 L
Engine Oil Capacity: 3.5 L
Fuel Tank Capacity: 16 L

Scope of Work

Maximum Excavation Height: 2483 mm
Maximum Unloading Height: 1738 mm
Maximum Excavation Depth: 1721 mm
Maximum Vertical Arm Excavation Depth: 1645 mm
Maximum Excavation Distance: 3034 mm
Minimum Turning Radius at Front End: 1941 mm
Maximum Excavation Ground Distance: 2938 mm
