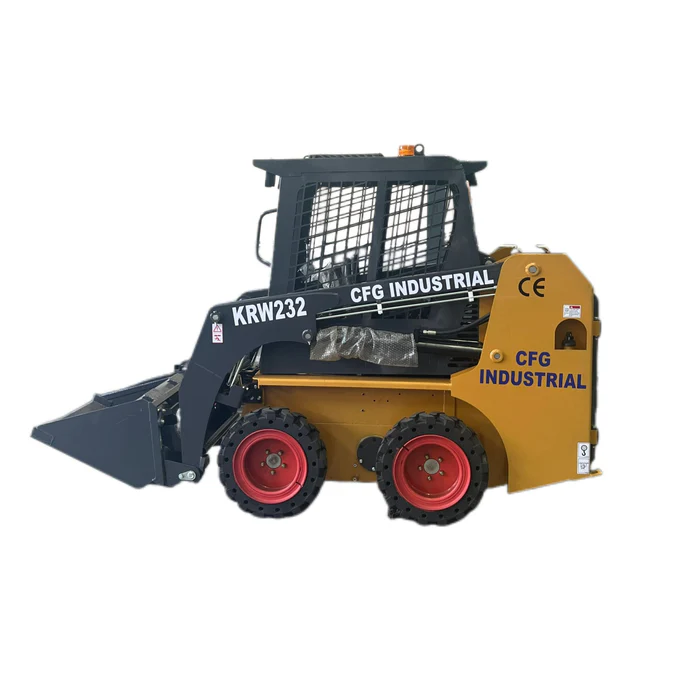

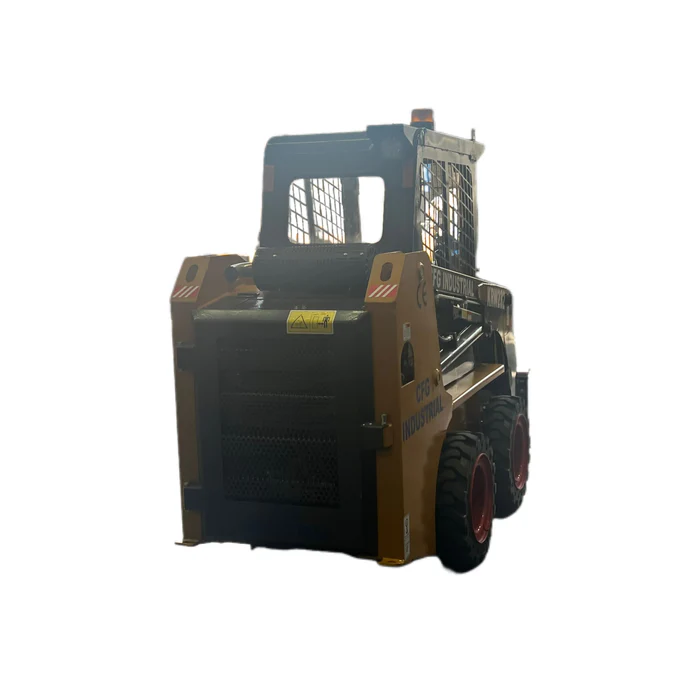

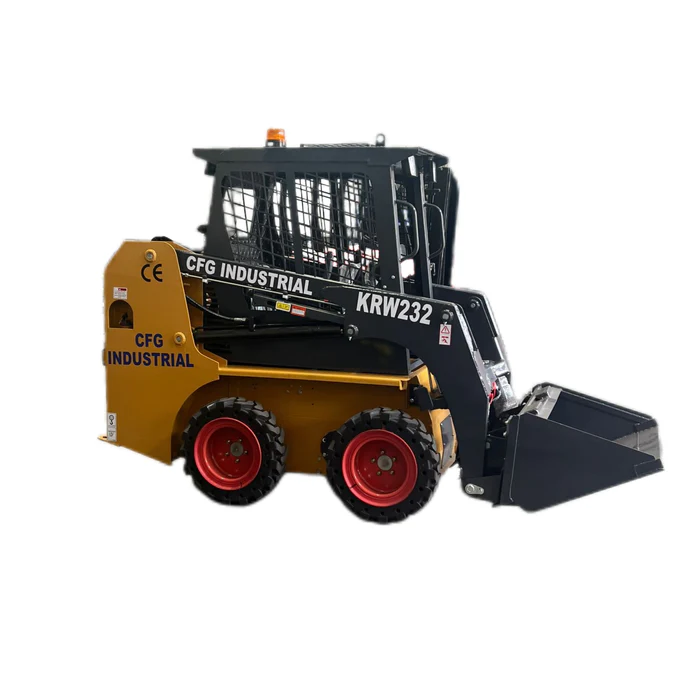

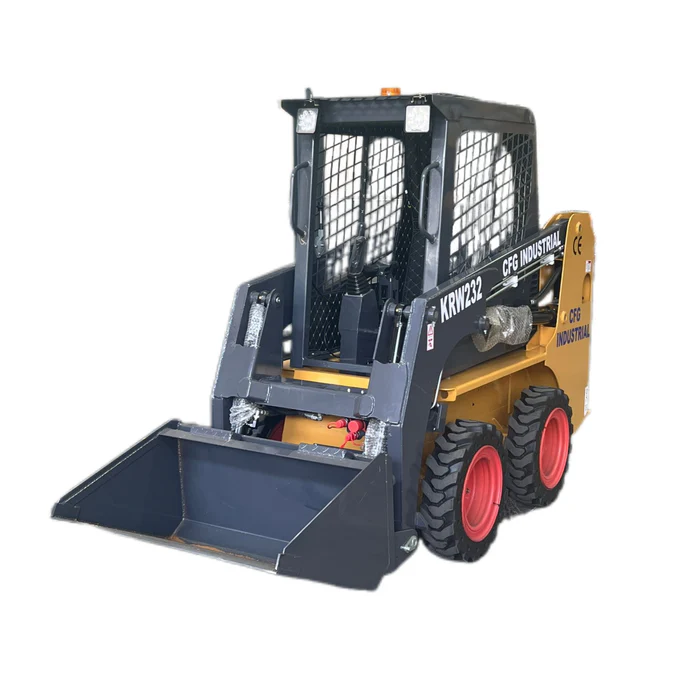

1.25 Ton, RATO Engine Mini Skid Steer |KRW232

The JK-KRW232 is a compact yet powerful loader designed for demanding tasks on farms, construction sites, and industrial yards. With a working weight of 1100 kg and a strong 380 kg lifting force, this machine offers reliable performance in a maneuverable package.
It features a robust Rato air-cooled gasoline engine delivering 33 HP, supported by a high-capacity hydraulic system with a 70 L/min flow rate—ideal for fast cycle times and efficient operation. The JK-KRW232 also boasts a tight 900 mm width and a 40° bucket discharge angle, making it perfect for tight-access tasks and quick loading jobs.
Technical Data:

Operating Weight: 1100 kg
Bucket Capacity: 0.16 m³
Travel Speed: Up to 4.5 km/h
Max Lifting Force: 380 kg
Max Working Height: 3590 mm
Unloading Height: 1820 mm
Bucket Discharge Angle: 40°
Wheelbase: 801 mm

Engine:

Rato, Air-cooled
Max Horsepower: 33 HP
Fuel Type: 92# Gasoline
Fuel Tank Capacity: 40 L
Theoretical Fuel Consumption: 10 L/h
Hydraulic Oil Tank: 40 L

Hydraulics:

Main Pump: PGP532B62
Max Flow Rate: 70 L/min

Dimensions:

Overall Length (with bucket): 2580 mm
Overall Length (without bucket): 1945 mm
Overall Width: 900 mm
Overall Height: 1820 mm
Tires: 570*16
